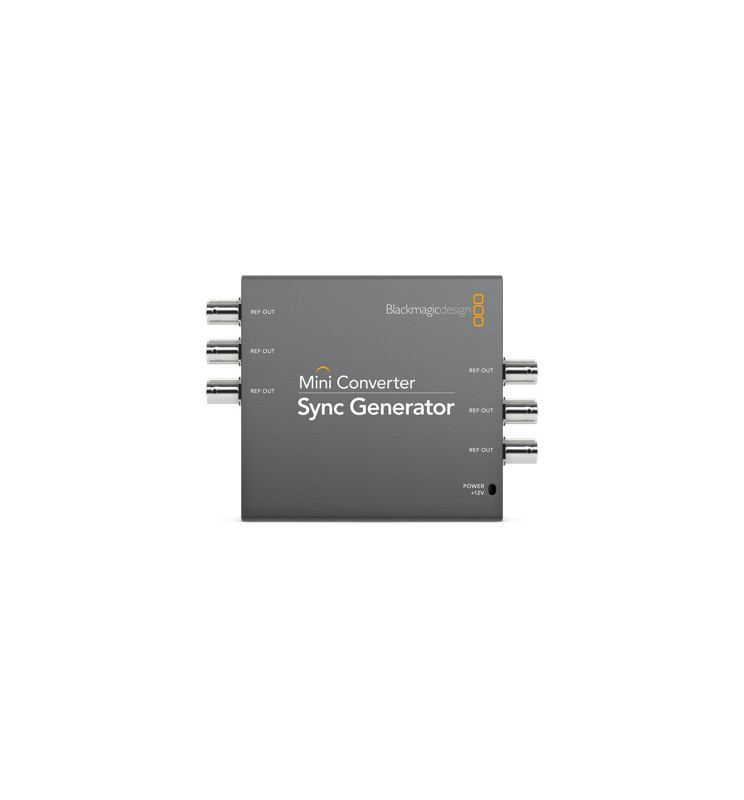

Mini Converter Sync Generator - Blackmagic
Mini Converter Sync Generator :
The Mini Converter Sync Generator includes 6 quartz stabilized video reference outputs to synchronize all your studio video content with standard definition Tri-Sync or Blackburst HD TV standards. This is the ideal solution for small studios and outdoor broadcasting.
✅Stocks are real
✅Technical Facilitator (30 years)
✅ 100% Secure Payments (CB, PayPal, Transfer, Quote)
Our privacy policy
Our Privacy Policy explains our principles when it comes to the collection, processing, and storage of your information. This policy specifically explains how we employ cookies, as well as the options you have to control them.
-
1 What are cookies?
Cookies are small pieces of data, stored in text files that are stored on your computer or other device when websites are loaded in a browser. They are widely used to "remember" you and your preferences, either for a single visit or for multiple repeat visits
-
2 How we use cookies
We use cookies for a number of different purposes. Some cookies are necessary for technical reasons; some enable a personalized experience for both visitors and registered users; and some allow the display of advertising from selected third party networks.
-
3 Controlling Cookies
Visitors may wish to restrict the use of cookies or completely prevent them from being set. If you disable cookies, please be aware that some of the features of our service may not function correctly
-
4 Information We Collect
We only collect information about you if we have a reason to do so-for example, to provide our services, to communicate with you, or to make our services better.
We are committed to maintaining the trust and confidence of our website visitors. We do not collect, sell, rent or trade email lists or any data with other companies and businesses. Have a look at our Privacy Policy page to read detail information on when and why we collect your personal information, how we use it, the limited conditions under which we may disclose it to others and how we keep it secure.
We may change Cookies and Privacy policy from time to time. This policy is effective from 24th May 2018.
Connections
Analog Video Outputs
6 x common Blackburst or Tri Level reference outputs.
SDI Rates
270Mb, 1.5G.
Multi Rate Support
Via mini switches
Updates and Configuration
USB
Standards
Analog Format Support
525i29.97 NTSC, 625i50 PAL, 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080PsF23.98, 1080PsF24, 1080i50, 1080i59.94, 1080i60
Software
Software Control
Mac™ and Windows™ software upgrade via USB.
Internal Software Upgrade
Via included updater application.
Operating Systems
Mac 10.15 Catalina,
Mac 11.1 Big Sur or later.
Windows 10, 64-bit.
Settings Control
Mini Switches or USB software.
Power Requirements
Power Supply
+12V universal power supply included with international socket adapters for most countries. Cable tie point.
Power Consumption
3.00 Watts
Operational Voltage Range
12V DC
Physical Specifications
Environmental Specifications
Operating temperature
0° to 40° C (32° to 104° F)
Storage temperature
-20° to 45° C (-4° to 113° F)
Relative Humidity
0% to 90% non‑condensing
What's Included
Mini Converter Sync Generator
12V universal power supply with international socket adapters
Warranty
3 Year Limited Manufacturer’s Warranty.
CONVMSYNC
Mini Converter Sync Generator :
The Mini Converter Sync Generator includes 6 quartz stabilized video reference outputs to synchronize all your studio video content with standard definition Tri-Sync or Blackburst HD TV standards. This is the ideal solution for small studios and outdoor broadcasting.
