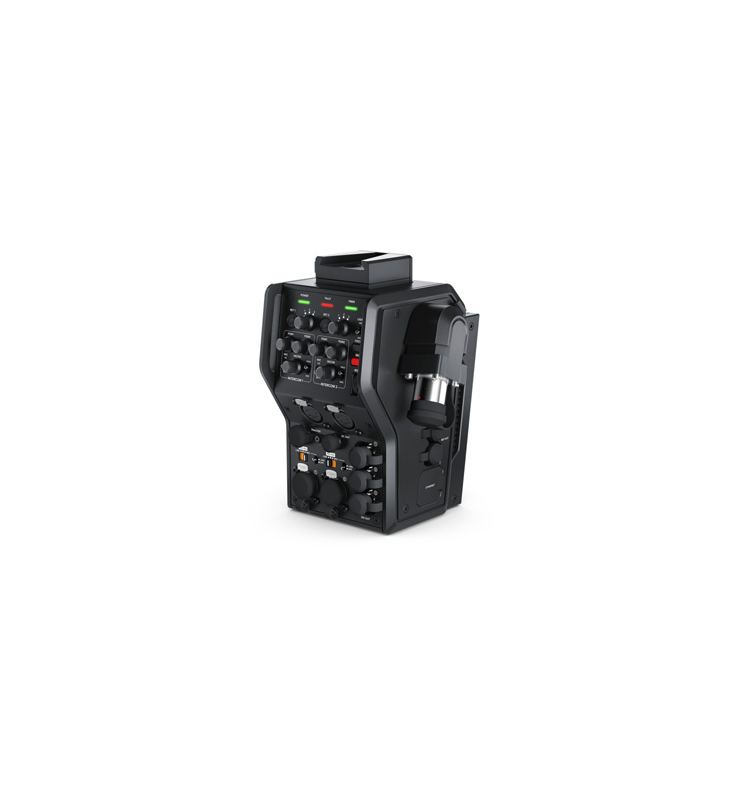

Camera Fiber Converter - Blackmagic
Camera Fiber Converter :
The Blackmagic Optical Fiber Converter allows you to connect and power your URSA Broadcast Camera up to 2 km via standard SMPTE fiber optic cable. It also includes live camera control commands, multiple network channels and headphone jacks. The Blackmagic Camera Fiber Converter offers a stream of Ultra HD, 3-way HD return cameras, all in a compact package that supports video over IP.
New
✅Stocks are real
✅Technical Facilitator (30 years)
✅ 100% Secure Payments (CB, PayPal, Transfer, Quote)
Our privacy policy
Our Privacy Policy explains our principles when it comes to the collection, processing, and storage of your information. This policy specifically explains how we employ cookies, as well as the options you have to control them.
-
1 What are cookies?
Cookies are small pieces of data, stored in text files that are stored on your computer or other device when websites are loaded in a browser. They are widely used to "remember" you and your preferences, either for a single visit or for multiple repeat visits
-
2 How we use cookies
We use cookies for a number of different purposes. Some cookies are necessary for technical reasons; some enable a personalized experience for both visitors and registered users; and some allow the display of advertising from selected third party networks.
-
3 Controlling Cookies
Visitors may wish to restrict the use of cookies or completely prevent them from being set. If you disable cookies, please be aware that some of the features of our service may not function correctly
-
4 Information We Collect
We only collect information about you if we have a reason to do so-for example, to provide our services, to communicate with you, or to make our services better.
We are committed to maintaining the trust and confidence of our website visitors. We do not collect, sell, rent or trade email lists or any data with other companies and businesses. Have a look at our Privacy Policy page to read detail information on when and why we collect your personal information, how we use it, the limited conditions under which we may disclose it to others and how we keep it secure.
We may change Cookies and Privacy policy from time to time. This policy is effective from 24th May 2018.
Connections
Optical Fiber Input
1x SMPTE Hybrid Fiber Optic
with SMPTE 304 connector (Male).
SDI Video Input
1x 12G SDI for Camera feed.
SDI Video Output
1x 3G SDI for Camera return
feed, 3x 3G SDI for Return SDI Outputs.
Talkback Audio
2x 5-pin XLR for headset with three way
audio mixer per output, 1x Tracker output.
Analog Audio
2x 3-pin XLR Inputs for AES,
Line or Mic input. Phantom Power available.
Computer Interface
1x USB-C connector.
Standards
HD Video Standards
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60
Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p60
SDI Compliance
SMPTE 259M, SMPTE 292M, 296M,
372M, 424M Level B, 425M.
Audio Sampling
Television standard sample rate of 48Khz, 24 bit A/D conversion.
Video Sampling
4:2:2
Color Precision
10-bit
Color Space
REC 709, REC 2020.
Multiple Rate Support
SDI switches between HD,
3G-SDI, 6G-SDI and 12G‑SDI.
Software
Software Included
Camera Utility for firmware update.
Operating Systems
Mac 13.0 Ventura,
Mac 14.0 Sonoma or later.
Windows 10 and 11.
Physical Specifications
Environmental Specifications
Operating Temperature
0° to 40° C (32° to 104° F)
Storage Temperature
-20° to 45° C (-4° to 113° F)
Relative Humidity
0% to 90% non‑condensing
What's Included
Blackmagic Camera Fiber Converter
Mounting Bracket and screws for attaching to URSA Mini and URSA Broadcast cameras
3x Short 12G SDI cables for SDI In and Out connectiong to URSA Mini and URSA Broadcast
Welcome wallet with QR code for software download
Warranty
1 Year Limited Manufacturer’s Warranty.
CINEURSANWFRCAM
