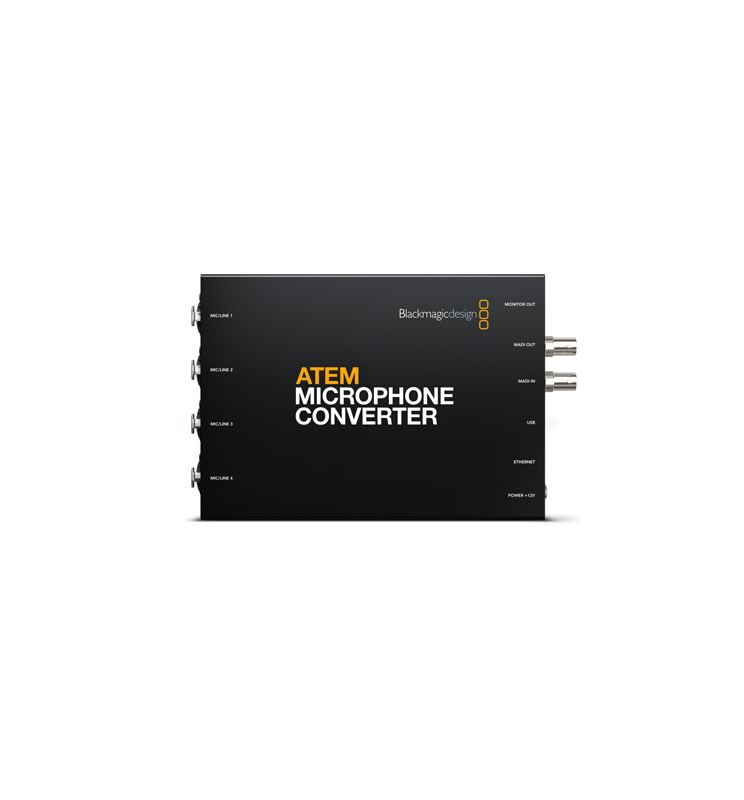

ATEM Microphone Converter - Blackmagic
ATEM Microphone Converter :
Now it’s easy to expand the MADI input on the ATEM Television Studio switchers to add multiple microphones or external audio mixer sources. The ATEM Microphone Converter simply plugs into the ATEM Television Studio MADI port, so there's no complex setup required and additional units can even be daisy chained for more sources. Each converter has 4 analog inputs that are mic/line selectable and have phantom power. The design features amazing audio quality with an extremely low noise floor, a wide dynamic range and very low distortion. The design even uses 8 separate ADCs on each separate input that work together to extend dynamic range! There is also an HDMI monitoring output with scrolling audio waveforms.
✅Stocks are real
✅Technical Facilitator (30 years)
✅ 100% Secure Payments (CB, PayPal, Transfer, Quote)
Our privacy policy
Our Privacy Policy explains our principles when it comes to the collection, processing, and storage of your information. This policy specifically explains how we employ cookies, as well as the options you have to control them.
-
1 What are cookies?
Cookies are small pieces of data, stored in text files that are stored on your computer or other device when websites are loaded in a browser. They are widely used to "remember" you and your preferences, either for a single visit or for multiple repeat visits
-
2 How we use cookies
We use cookies for a number of different purposes. Some cookies are necessary for technical reasons; some enable a personalized experience for both visitors and registered users; and some allow the display of advertising from selected third party networks.
-
3 Controlling Cookies
Visitors may wish to restrict the use of cookies or completely prevent them from being set. If you disable cookies, please be aware that some of the features of our service may not function correctly
-
4 Information We Collect
We only collect information about you if we have a reason to do so-for example, to provide our services, to communicate with you, or to make our services better.
We are committed to maintaining the trust and confidence of our website visitors. We do not collect, sell, rent or trade email lists or any data with other companies and businesses. Have a look at our Privacy Policy page to read detail information on when and why we collect your personal information, how we use it, the limited conditions under which we may disclose it to others and how we keep it secure.
We may change Cookies and Privacy policy from time to time. This policy is effective from 24th May 2018.
Connections
Analog Audio Inputs
4 x Combination 3-pin XLR and TRS 1/4 inch Jack switchable between +24dB line and mic level with support for +48V phantom power.
MADI Inputs
1 x BNC supports 64 channel MADI digital audio
MADI Outputs
1 x BNC supports 64 channel MADI digital audio
HDMI Video Outputs
1 x monitor out.
Computer Interface
1 x USB-C with locking screw
Ethernet
Supports 10/100/1000 BASE‑T.
HDMI Output Standards
HD Video Standards
1080p24, 1080p25, 1080p30, 1080p48, 1080p50, 1080p60
HDMI Monitoring
Displays ATEM Microphone Converter name and 4, 8, 12 or 16 audio channels with 60 second waveform history. Also includes individual channel name, VU meters, mic or line level setting and phantom power status.
Audio
ADCs Per Input
8
Digital Preamp
32-bit
Dynamic Range
131dB(A)
Noise Floor
-129dBV
Total Harmonic Distortion at full scale
0.002%
Output Sample Depth
24-bit
Output Sampling Rate
48KHz
MADI Compliance
AES10-2020
Software
Software Control
Mac™ and Windows™ software upgrade via USB or Ethernet.
Internal Software Upgrade
Via downloadable utility application.
Operating Systems
Mac 13.0 Ventura,
Mac 14.0 Sonoma or later.
Windows 10 and 11.
Settings Control
Software Settings Control
USB and Ethernet via free software utility.
Hardware Switches
Mini switches for selecting mic or line level and setting +48V phantom power on/off.
Power Requirements
Power Supply
1 x External 12V power supply with locking connector.
Power Consumption
12W max.
Operational Voltage Range
12V to 17.5V DC
Physical Specifications
Environmental Specifications
Operating Temperature
0° to 40°C (32° to 104°F)
Storage Temperature
-20° to 60°C (‑4° to 140°F)
Relative Humidity
0% to 90% non‑condensing
What's Included
ATEM Microphone Converter
External 12V DC power supply with locking connector and international socket adapters for most countries.
Welcome wallet with QR code for software download
Warranty
1 Year Limited Manufacturer’s Warranty.
SWATEMTVSTDMC
