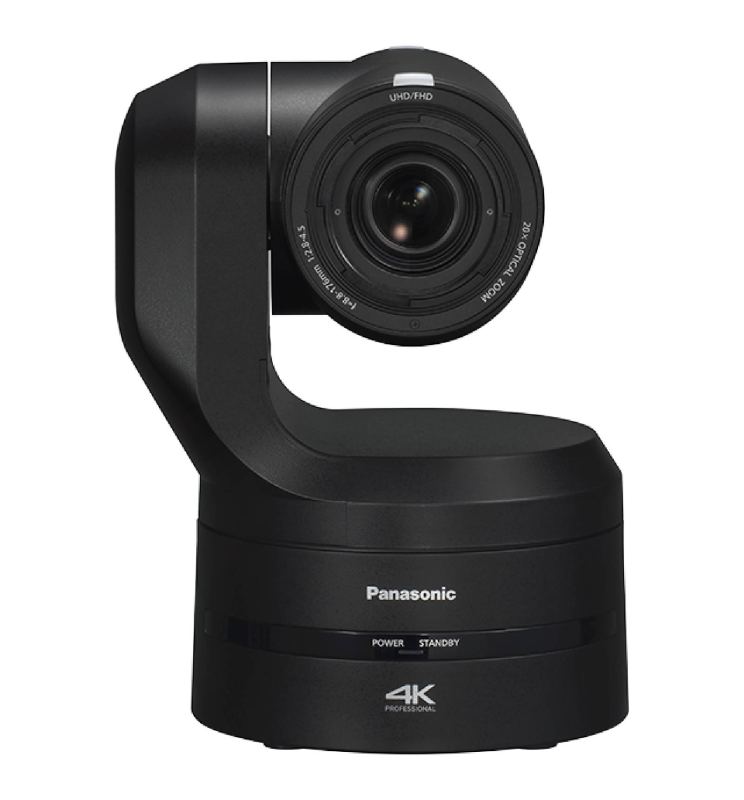

AW-UE160KEJ5 Caméra PTZ 4K - Panasonic
AW-UE160KEJ5
Panasonic AW-UE160KEJ9- 4K Integrated PTZ Camera, Black version (requires additional 12V 5A power supply)
• 4K/UHD (3840 x 2160) remote camera, with support for UHD and HD shooting formats
• 1.0-type single MOS sensor with high sensitivity at F11/2000lx natively and PDAF
• Built-in optical low-pass filter reducing Morié pattern
• Support for HDR (HLG, BT2020 or V-Log)
• Wide angle shooting 75.1° horizontally
• High magnification zoom 20x (optical), 32x intelligent zoom and up to 40x in HD mode
• 2x High-Speed in HD resolution over HDMI and SDI
• Supports NDI High Bandwidth or NDI|HX2 at UHD or HD resolution
• HD Crop feature: allows to output 2 different video feeds at the same time (1 wide, 1 zoomed)
• Support for POE++
• SMPTE ST 2110 support directly from camera with optional license AW-SFU60
• Requires additional 12V 5A power supply, not compatible with AW-PS550 and AW-PS551, compatible with IDX-IA70AXLR
• NEW: Built-In Auto Framing Function enabling Broadcast quality tracking movements
➡️ SMPTE ST2110 software key ⬅️
New
✅Stocks are real
✅Technical Facilitator (30 years)
✅ 100% Secure Payments (CB, PayPal, Transfer, Quote)
Our privacy policy
Our Privacy Policy explains our principles when it comes to the collection, processing, and storage of your information. This policy specifically explains how we employ cookies, as well as the options you have to control them.
-
1 What are cookies?
Cookies are small pieces of data, stored in text files that are stored on your computer or other device when websites are loaded in a browser. They are widely used to "remember" you and your preferences, either for a single visit or for multiple repeat visits
-
2 How we use cookies
We use cookies for a number of different purposes. Some cookies are necessary for technical reasons; some enable a personalized experience for both visitors and registered users; and some allow the display of advertising from selected third party networks.
-
3 Controlling Cookies
Visitors may wish to restrict the use of cookies or completely prevent them from being set. If you disable cookies, please be aware that some of the features of our service may not function correctly
-
4 Information We Collect
We only collect information about you if we have a reason to do so-for example, to provide our services, to communicate with you, or to make our services better.
We are committed to maintaining the trust and confidence of our website visitors. We do not collect, sell, rent or trade email lists or any data with other companies and businesses. Have a look at our Privacy Policy page to read detail information on when and why we collect your personal information, how we use it, the limited conditions under which we may disclose it to others and how we keep it secure.
We may change Cookies and Privacy policy from time to time. This policy is effective from 24th May 2018.
| General -> Power Requirements | 12 V DC ± 10% (10.8 V to 13.2 V) |
|---|---|
| General -> PoE | PoE++ IEEE802.3bt standard: DC 42 V to 57 V (Camera Input) (Software authentication (LLDP) is supported). |
| General -> Current Consumption | 5.0A (XLR IN connector), 1.5A (PoE++ power supply) |
| General -> Ambient Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| General -> Ambient Operating Humidity | 20 % to 90 % (no condensation) |
| General -> Storage Temperature | –20 °C to 50 °C (–4 °F to 122 °F) |
| General -> Weight | Approx. 4.6 kg (10.14 lbs) (excluding mount bracket) |
| General -> Dimensions | W 213 mm x H 277 mm x D 240 mm (8.39 inches x 10.91 inches x 9.45 inches) (excluding protrusions, ceiling mount bracket) |
| General -> Finish | AW‑UE160W: Pearl white AW‑UE160K: Black |
| General -> Controller Supported | See the "Compatibility Chart for Operation Devices and Application Software" page |
| Camera Unit -> Imaging Sensor | 1-type 4K MOSx1 |
| Camera Unit -> Effective Pixels | Approx. 9,620,000 pixels |
| Camera Unit -> Zoom | ・Optical zoom: 20x ・i.Zoom: UHD 24x, FHD 32x ・D.Extender zoom: 1.4x, 2x |
| Camera Unit -> Lens | Motorized Optical 20x zoom, F2.8 to F4.5 [f=8.8 mm (11/32 inches) to 176.0 mm (6-15/16 inches), 35 mm (1-3/8 inches) equivalent: 24.5 mm (31/32 inches) to 490.0 mm (19-9/32 inches)] |
| Camera Unit -> Conversion Lens | Not supported |
| Camera Unit -> Angle of View Range | Horizontal angle of view: 75.1° (wide) to 4.0° (tele) Vertical angle of view: 46.7° (wide) to 2.3° (tele) Diagonal angle of view: 82.8° (wide) to 4.6° (tele) |
| Camera Unit -> Optical Filter -> ND Filter | Through, 1/4, 1/16, 1/64 *4, (Through is used as “Night mode”) |
| Camera Unit -> Focus | Switching between auto and manual |
| Camera Unit -> Focus Distance | Entire zooming range: 1000 mm (3.3 ft) Wide end: 100 mm (0.33 ft) |
| Camera Unit -> Color Separation Optical System | 1MOS |
| Camera Unit -> Standard Sensitivity | F14 / 2,000lx (Low Light), F11 / 2,000lx (Normal) (59.94Hz) F15 / 2,000lx (Low Light), F12 / 2,000lx (Normal) (50Hz) |
| Camera Unit -> Horizontal Resolution -> 4K | 1,600 TV lines Typ (Center area) |
| Camera Unit -> Gain Selection | Auto, -6 dB to 12 dB *5 |
| Camera Unit -> Frame Mix | Auto, 0 dB, 6 dB, 12 dB, 18 dB, 24 dB *6 |
| Camera Unit -> Electronic Shutter Speed -> 60p | 1/60, 1/100, 1/120, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000 |
| Camera Unit -> Electronic Shutter Speed -> 59.94p/59.94i | 1/60, 1/100, 1/120, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000 |
| Camera Unit -> Electronic Shutter Speed -> 50p/50i | 1/60, 1/100, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000 |
| Camera Unit -> Electronic Shutter Speed -> 29.97p | 1/48, 1/50, 1/60, 1/96, 1/100, 1/120, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000 |
| Camera Unit -> Electronic Shutter Speed -> 25p | 1/48, 1/50, 1/60, 1/96, 1/100, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000 |
| Camera Unit -> Electronic Shutter Speed -> 23.98p/24p | 1/48, 1/50, 1/60, 1/96, 1/100, 1/200, 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000 |
| Camera Unit -> Electronic Shutter Speed -> 59.94p/120fps | 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000 |
| Camera Unit -> Electronic Shutter Speed -> 50p/100fps | 1/125, 1/250, 1/500, 1/1000, 1/1500, 1/2000 |
| Camera Unit -> Synchro Scan -> 60p | 60.00 Hz to 7200 Hz |
| Camera Unit -> Synchro Scan -> 59.94p/59.94i | 60.00 Hz to 7200 Hz |
| Camera Unit -> Synchro Scan -> 50p/50i | 50.00 Hz to 7200 Hz |
| Camera Unit -> Synchro Scan -> 29.97p | 30.00 Hz to 7200 Hz |
| Camera Unit -> Synchro Scan -> 25p | 25.00 Hz to 7200 Hz |
| Camera Unit -> Synchro Scan -> 23.98p/24p | 24.00 Hz to 7200 Hz |
| Camera Unit -> Synchro Scan -> 59.94p/120fps | 120.00 Hz to 7200 Hz |
| Camera Unit -> Synchro Scan -> 50p/100fps | 100.00 Hz to 7200 Hz |
| Camera Unit -> Gamma | HD / NORMAL / CINEMA1 / CINEMA2 *7 MASTER GAMMA (0.15～0.75) R GAMMA (-75～+75) B GAMMA (-75～+75) R BLACK GAMMA (-20～+20) B BLACK GAMMA (-20～+20) |
| Camera Unit -> White Balance | ATW *8: 3200K, 5600K AWB : AWB-A / AWB-B VAR (selectable between 2000K and 15000K by designating a value) |
| Camera Unit -> Chroma Amount Variability | OFF, –100 % to 40 % |
| Camera Unit -> Scene File | Scene1 to 8 |
| Camera Unit -> Color Bar | SMPTE, FULL ARIB (FHD): Output of base band type only ARIB (UHD): Output of base band type UHD only ARIB (2020/HLG): Output of base band type UHD only •IP display color bars do not conform with SMPTE |
| Camera Unit -> Output Format (SDI) -> 4K | 2160/60p, 2160/59.94p, 2160/50p, 2160/29.97p (Native), 2160/25p (Native), 2160/24p (Native), 2160/23.98p (Native) |
| Camera Unit -> Output Format (SDI) -> HD | 1080/119.88p *10 *11, 1080/100p *10 *11, 1080/60p, 1080/59.94p, 1080/50p, 1080/29.97p (Native), 1080/25p (Native), 1080/24p (Native), 1080/23.98p (Native), 1080/59.94i, 1080/50i, 720/59.94p, 720/50p |
| Camera Unit -> Output Format (HDMI) -> 4K | 2160/60p, 2160/59.94p, 2160/50p, 2160/29.97p (Native), 2160/25p (Native), 2160/24p (Native), 2160/23.98p (Native) |
| Camera Unit -> Output Format (HDMI) -> HD | 1080/119.88p, 1080/100p, 1080/60p, 1080/59.94p, 1080/50p, 1080/29.97p (Native), 1080/25p (Native), 1080/25PsF, 1080/24p (Native), 1080/23.98p (Native), 1080/59.94i, 1080/50i, 720/59.94p, 720/50p |
| Camera Unit -> Output Format(Fiber (video only)) -> 4K | 2160/59.94p, 2160/50p, 2160/29.97p (Native), 2160/25p (Native), 2160/24p (Native), 2160/23.98p (Native) |
| Camera Unit -> Output Format(Fiber (video only)) -> HD | 1080/60p, 1080/59.94p, 1080/50p, 1080/29.97p (Native), 1080/25p (Native), 1080/24p (Native), 1080/23.98p (Native), 1080/59.94i, 1080/50i, 720/59.94p, 720/50p |
| Camera Unit -> Output Format(ST 2110) | 1080/60p, 1080/59.94p, 1080/50p, 1080/29.97p (Native), 1080/25p (Native), 1080/24p (Native), 1080/23.98p (Native), 720/59.94p, 720/50p |
| Synchronization System | Internal/External synchronization (BBS/Tri-level sync) |
| Input Connector -> DC IN | DC 12 V IN |
| Input Connector -> G/L IN | BBS (Black Burst Sync), tri-level sync supported |
| Input Connector -> AUDIO INPUT -> XLR | XLR (2ch) or MIC/LINE Input compatibles (SDI/HDMI/IP) AAC compatibility (compatible with IP only) XLR 3-pin female balanced input: 2ch • During MIC input Input level: –50 dBu or -60 dBu/-40 dBu (0 dB=1 V/Pa, 1 kHz) Phantom power compatible, Supply voltage: 47 V±2 V Input impedance: Approx. 10kΩ • During LINE input Input level: 0 dBu (or +4 dBu/-20 dBu) Input impedance: Approx. 10kΩ • Input volume variable range: -40 dB to 0 dB to +20 dB (1 dB step) • Embedded audio output level: -12 dBFS/-18 dBFS/-20 dBFS • Sampling frequency: 48 kHz • Quantization bit rate: 24 bit (SDI/HDMI), 16bit (IP) |
| Output Connector -> HDMI | HDMI 2.0 standard 4:2:2/10bit *13 *14 |
| Output Connector -> 12G-SDI OUT | SMPTE2082_1, SMPTE424M/SMPTE292M/ 75 Ω (BNC x 1) *15 |
| Output Connector -> 3G-SDI OUT1 | SMPTE424M/SMPTE292M/ 75 Ω (BNC x 1) *15 |
| Output Connector -> 3G-SDI OUT2/PM | SMPTE424M/SMPTE292M/ 75 Ω (BNC x 1) *15 |
| Output Connector -> SFP+ | SFP+ compliant (Single Fiber) *16, MSA standard compliant product |
| Output Connector -> USB | USB3.0 HOST 5G mobile router (with USB tethering support *17 |
| Input/Output Connector -> LAN | LAN connector for IP control (RJ‑45) 100BASE-TX/1000BASE-T |
| Input/Output Connector -> RS-422 | CONTROL IN RS-422A (RJ‑45) |
| Input/Output Connector -> SFP+（ST 2110） *12 | Compatible protocol: • ST 2120-10/-20/-21/-22/-30 • PTP ST 2059-1/2 • NMOS IS-04/IS-05 Number of outputs: [Uncompressed] Video x3 (Main line, Crop, Monitor), Audio x2 [JPEG XS] Video x1 (Main line, Crop), Audio x2 Number of inputs: Video x1 (RETURN) Video format: FHD, UHD *18 Please refer to the operating instruction manual. |
| Pan-tilt Head Unit -> IP connecting cable | • With PoE++ ethernet hub LAN cable *19(category 5e or above, straight cable) up to 100 m • Without PoE++ ethernet hub LAN cable *19(category 5e or above, straight cable) up to 100 m *20 |
| Pan-tilt Head Unit -> AW protocol connecting cable | LAN cable *19(category 5e or above, straight cable) up to 1000 m |
| Pan-tilt Head Unit -> Installation Method *4 | Stand-alone (Desktop) or suspended (Hanging) *21 |
| Pan-tilt Head Unit -> Pan/tilt Operation Speed | 0.08 °/s to 180°/s (Normal mode) *22 Maximum speed: Normal mode: 60°/s, Fast1 mode: 90°/s, Fast2 mode: 180°/s |
| Pan-tilt Head Unit -> Panning Range | ±175° |
| Pan-tilt Head Unit -> Tilting range | –30° to 210° *22 |
| Pan-tilt Head Unit -> Quietness | NC35 or less *23 |
| Supported Operating Systems and Web Browsers -> Windows *6 | Windows®10 Microsoft Edge Google Chrome |
| Supported Operating Systems and Web Browsers -> Mac *6 | macOS 10.13 / Safari 13 macOS 10.14 / Safari 13 macOS 10.15 / Safari 13 macOS 10.15 / Google Chrome |
| Supported Operating Systems and Web Browsers -> iPhone/iPad *9 | iOS Safari iPadOS |
| Supported Operating Systems and Web Browsers -> Android *9 | Android OS Google Chrome |
| IP Streaming -> Image Streaming Mode | JPEG (MJPEG), H.264, H.265, NDI® High Bandwidth, NDI® HX *24 *25 |
| IP Streaming -> Image Resolution | 3840x2160, 1920x1080, 1280x720, 640x360 |
| IP Streaming -> Image Transmission Setting (JPEG) | Frame Rate: Maximum 30 fps *26 *27 Image quality (Fine / Normal) |
| IP Streaming -> Image Transmission Setting (H.264) -> Transmission Type | Unicast port (AUTO) Unicast port (MANUAL) Multicast port |
| IP Streaming -> Image Transmission Setting (H.264) -> Transmission mode | CBR, VBR |
| IP Streaming -> Image Transmission Setting (H.264) -> Frame Rate | [60Hz] 5fps / 15fps / 30fps / 60fps (UHD: 30fps, 60fps) [50Hz] 5fps / 12.5fps / 25fps / 50fps (UHD: 25fps, 50fps) |
| IP Streaming -> Image Transmission Setting (H.264) -> Max Bit Rate | 2048kbps / 4096kbps / 8192kbps / 10240kbps / 12288kbps / 14336kbps / 20480kbps / 24576kbps / 51200kbps / 76800kbps |
| IP Streaming -> Image Transmission Setting (H.265) -> Transmission Type | Unicast port (AUTO) Unicast port (MANUAL) Multicast port |
| IP Streaming -> Image Transmission Setting (H.265) -> Transmission mode | CBR, VBR |
| IP Streaming -> Image Transmission Setting (H.265) -> Frame Rate | [60Hz] 30fps / 60fps [50Hz] 25fps / 50fps |
| IP Streaming -> Image Transmission Setting (H.265) -> Max Bit Rate | 2048kbps / 4096kbps / 8192kbps / 10240kbps / 12288kbps / 14336kbps / 20480kbps / 24576kbps / 51200kbps / 76800kbps |
| IP Streaming -> Audio Compression Format | AAC-LC, 48 kHz / 16 bit / 2ch |
| IP Streaming -> Supported Protocol -> Network Protocol | ICMP, ARP, GARP, MLD |
| IP Streaming -> Supported Protocol -> Transmission Protocol | TCP/IP, UDP/IP |
| IP Streaming -> Supported Protocol -> IPv6 | IPv4: HTTP, HTTPS, DNS, NTP, DHCPv6, MDNS, SNMP, 802.1X |
| IP Streaming -> Supported Protocol -> IPv4 | IPv6: HTTP, HTTPS, DNS, NTP, DHCPv4, MDNS, SNMP, 802.1X |
| IP Streaming -> Supported Protocol -> Video Streaming Protocol | RTP / RTCP over RTSP, RTMP, RTMPS, SRT, MPEG2-TS over UDP, NDI® high bandwidth , NDI® HX |
| IP Streaming -> Supported Protocol -> External Device Cooperation Protocol | FreeD, TSL5.0, SNMP |
| NDI® Support -> NDI® Support | NDI®(High Bandwidth NDI®, NDI®|HX Ver.2) *24 *25 |
| NDI® Support -> Output Format (NDI® High bandwidth) -> 4K | 2160/59.94p, 2160/50p, 2160/29.97p, 2160/25p, 2160/24p, 2160/23.98p |
| NDI® Support -> Output Format (NDI® High bandwidth) -> HD | 1080/60p, 1080/59.94p, 1080/50p, 1080/29.97p, 1080/25p, 1080/24p, 1080/23.98p, 720/59.94p, 720/50p |
| NDI® Support -> Image Resolution (NDI® HX) | 1920x1080, 1280x720 *29 |
| NDI® Support -> Image Streaming Setting (NDI® High bandwidth) -> Transmission Type | Transmission Type: TCP/UDP Unicast/Multicast |
| NDI® Support -> Image Streaming Setting (NDI® High bandwidth) -> Max Bit Rate | Max 250 Mbps |
| NDI® Support -> Image Streaming Setting (NDI® HX) -> Transmission Type | TCP/UDP Unicast/Multicast |
| NDI® Support -> Image Streaming Setting (NDI® HX) -> Flame rate | [60Hz] 5fps / 15fps / 30fps / 60fps [50Hz] 5fps / 12.5fps / 25fps / 50fps |
| NDI® Support -> Image Streaming Setting (NDI® HX) -> Max Bit Rate | 512kbps / 768kbps / 1024kbps / 1536kbps / 2048kbps / 3072kbps /4096kbps / 6144kbps / 8192kbps / 10240kbps / 12288kbps / 14336kbps / 16384kbps / 20480kbps / 24576kbps |
| NDI® Support -> Audio Compression Type (NDI® High bandwidth) | AAC, 48 kHz, 2 ch |
| NDI® Support -> Audio Compression Type (NDI® HX) | AAC-LC, 48 kHz,16 bit, 2 ch |
| Other Function -> VR Support (IP/RS422) | Supported |
| ST 2110 -> Supported Format | ST 2110: 10/20/21/30 PTP: ST2059-2 NMOS: IS-04/IS-05 |
| ST 2110 -> Number of Outputs (TX) -> Video | 3 channels (Full x 1, MONI x 1, Crop x 1) |
| ST 2110 -> Number of Outputs (TX) -> Audio | 2 channels |
| ST 2110 -> Number of Outputs (TX) -> Auxiliary data | No output |
| ST 2110 -> Number of Inputs (RX) -> Video | 1 channel (RETURN) *30 |
| ST 2110 -> Number of Inputs (RX) -> Audio | No input |
| ST 2110 -> Number of Inputs (RX) -> Auxiliary data | No input |
| ST 2110 -> Output Format -> Video format | Full x1, MONI x1, Crop x1, all the same format 1080/60p, 1080/59.94p, 1080/50p, 1080/59.94i, 1080/50i, 1080/29.97p (Native), 1080/25p (Native), 1080/24p, 1080/23.98p (Native), 720/59.94p, 720/50p |
| ST 2110 -> Output Format -> Audio specifications (MIC1/2) | PCM / 48kHz / 24bit / 1ch x2 |
| ST 2110 -> Input Format | 1080/60p, 1080/59.94p, 1080/50p, 1080/59.94i, 1080/50i, 1080/29.97p (Native), 1080/25p (Native),1080/24p, 1080/23.98p (Native), 720/59.94p, 720/50p |
| Optional Accessories -> Wireless Remote Controller | AW‑RM50AG (Size "AA" dry battery x2, obtained separately) |
| Description de la note de bas de page | * NDI® is a registered trademark of Vizrt NDI AB in the United States and other countries.
|
AW-UE160KEJ9
New
Specific References
- ean13
- 5025232991259
- mpn
- AW-UE160KEJ9
