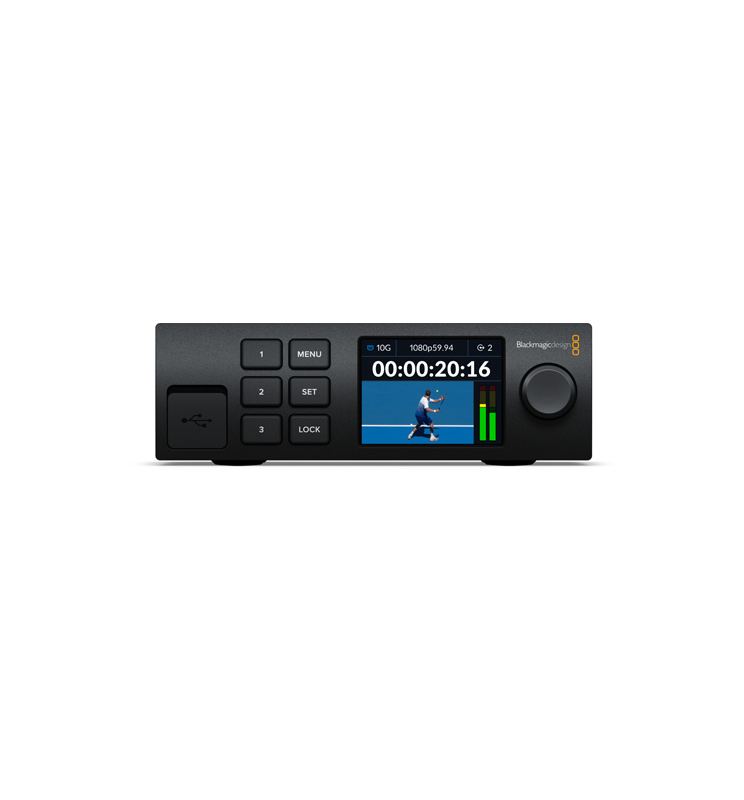

2110 IP Converter 3x3G - Blackmagic
2110 IP Converter 3x3G :
The new Blackmagic 2110 IP Converter 3x3G lets you convert 3 separate 3G-SDI devices to 2110 IP video systems. That’s because its 10G Ethernet connection can handle 3 separate video channels at the same time. Plus each channel has independent SDI inputs and SDI outputs, so you could even connect to 6 completely different SDI devices!
All 3G-SDI inputs feature loop outputs so you can install the converter in line within existing SDI systems. There’s also a reference output, timed to the 2110 PTP clock! Blackmagic 2110 IP Converter 3x3G includes an elegant front panel with a color LCD for monitoring, menus and diagnostics. You can even route IP inputs from the panel!
✅Stocks are real
✅Technical Facilitator (30 years)
✅ 100% Secure Payments (CB, PayPal, Transfer, Quote)
Our privacy policy
Our Privacy Policy explains our principles when it comes to the collection, processing, and storage of your information. This policy specifically explains how we employ cookies, as well as the options you have to control them.
-
1 What are cookies?
Cookies are small pieces of data, stored in text files that are stored on your computer or other device when websites are loaded in a browser. They are widely used to "remember" you and your preferences, either for a single visit or for multiple repeat visits
-
2 How we use cookies
We use cookies for a number of different purposes. Some cookies are necessary for technical reasons; some enable a personalized experience for both visitors and registered users; and some allow the display of advertising from selected third party networks.
-
3 Controlling Cookies
Visitors may wish to restrict the use of cookies or completely prevent them from being set. If you disable cookies, please be aware that some of the features of our service may not function correctly
-
4 Information We Collect
We only collect information about you if we have a reason to do so-for example, to provide our services, to communicate with you, or to make our services better.
We are committed to maintaining the trust and confidence of our website visitors. We do not collect, sell, rent or trade email lists or any data with other companies and businesses. Have a look at our Privacy Policy page to read detail information on when and why we collect your personal information, how we use it, the limited conditions under which we may disclose it to others and how we keep it secure.
We may change Cookies and Privacy policy from time to time. This policy is effective from 24th May 2018.
Connections
SDI Inputs
3
SDI Loop Outputs
3
SDI Outputs
3
SDI Audio Inputs
16 channels embedded audio.
SMPTE 2110 Input / Output
10G Ethernet supports 3 x video input channels and 3 x video output channels each up to 1080p60 and up to 16 channels of embedded audio plus ancillary data.
10G Ethernet Port
1 x 10Gb/s PoE+ RJ‑45 connector supports 10/100/1000/10G BASE-T.
Reference Output
Tri-Sync or Black Burst.
Computer Interface
USB-C for updates, configuration and control.
Video Standards
HD Video Standards
720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
SDI Compliance
SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M, ITU-R BT.656, ITU-R BT.601.
SDI Metadata Support
RP 188/SMPTE 12M-2 and closed captioning.
Audio Sampling
Television standard sample rate of 48 kHz and 24 bit.
Color Precision
8, 10 RGB 4:4:4 in all modes up to 1080p30 and 8, 10-bit YUV 4:2:2 in all modes.
Color Space
REC 709
IP Video Compliance
SMPTE 2110-20 (Uncompressed Video)
IGMP v2
SMPTE 2110-21 (Traffic Shaping)
Sender: Narrow
Receiver: Narrow, Wide Synchronous, Asynchronous
SMPTE 2110-30 (PCM)
Audio Conformance level: Level C
SMPTE 2110-40 (Ancillary Data)
Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata.
Precision Time Protocol
IEEE 1588-2008 (PTP v2)
ST 2059-1
ST 2059-2
NMOS IS-04 Discovery and Registration
v1.3.2
Peer-to-peer via mDNS/DNS-SD
NMOS IS-05 Connection Management
v1.1.2
NMOS BCP-002-01
Natural Grouping
NMOS BCP-004-01
Receiver capabilities
Control
Built in Control Panel
6 buttons with spin knob control and 2.2 inch color display for device control and menu settings.
External Control
RJ-45 10Gb/s Ethernet and USB-C.
Display
Built in 2.2 inch LCD for video, video standard, audio and timecode monitoring plus menu settings.
Physical Specifications
Operating Systems
Mac 13.0 Ventura,
Mac 14.0 Sonoma or later.
Windows 10 and 11.
Power Requirements
Power Supply
1 x Internal 100 - 240V AC 50/60Hz.
Power Inputs
1 x IEC C14 socket for AC power.
1 x RJ45 Ethernet connector for power from PoE+ power supplies.
Power Usage
20 W
Environmental Specifications
Operating Temperature
5° to 40 ° C (32° to 104° F)
Storage Temperature
-20° to 60° C (-4° to 140° F)
Relative Humidity
0% to 90% non-condensing
What's Included
Blackmagic 2110 IP Converter 3x3G
Welcome wallet with QR code for software download
Warranty
1 Year Limited Manufacturer's Warranty
CONVNVIPA3/3G
2110 IP Converter 3x3G :
The new Blackmagic 2110 IP Converter 3x3G lets you convert 3 separate 3G-SDI devices to 2110 IP video systems. That’s because its 10G Ethernet connection can handle 3 separate video channels at the same time. Plus each channel has independent SDI inputs and SDI outputs, so you could even connect to 6 completely different SDI devices!
All 3G-SDI inputs feature loop outputs so you can install the converter in line within existing SDI systems. There’s also a reference output, timed to the 2110 PTP clock! Blackmagic 2110 IP Converter 3x3G includes an elegant front panel with a color LCD for monitoring, menus and diagnostics. You can even route IP inputs from the panel!
