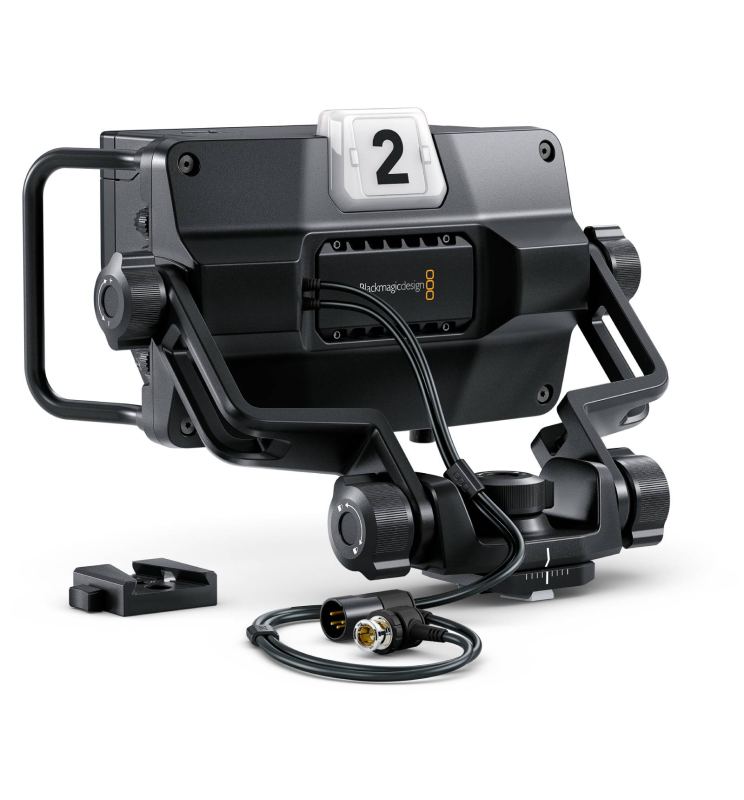

URSA Studio Viewfinder G2 - Blackmagic
URSA Studio Viewfinder :
When you’re working live in the studio or out at an event in a large venue such as a stadium, the URSA Studio Viewfinder G2 gives you everything you need to comfortably operate your URSA Mini in live production! The bright 7” screen has a detachable sunshade and includes large handles and an articulated pivot mount that let you position and move the viewfinder independent of the camera! The large rotary control dials and customizable function buttons let you make on the fly adjustments without having to take your eyes off the action! Set up is quick and easy using the included V-Lock plate and it connects directly to the SDI monitor and power output on your URSA Mini, so you don’t need additional cables or power supplies.
✅Stocks are real
✅Technical Facilitator (30 years)
✅ 100% Secure Payments (CB, PayPal, Transfer, Quote)
Our privacy policy
Our Privacy Policy explains our principles when it comes to the collection, processing, and storage of your information. This policy specifically explains how we employ cookies, as well as the options you have to control them.
-
1 What are cookies?
Cookies are small pieces of data, stored in text files that are stored on your computer or other device when websites are loaded in a browser. They are widely used to "remember" you and your preferences, either for a single visit or for multiple repeat visits
-
2 How we use cookies
We use cookies for a number of different purposes. Some cookies are necessary for technical reasons; some enable a personalized experience for both visitors and registered users; and some allow the display of advertising from selected third party networks.
-
3 Controlling Cookies
Visitors may wish to restrict the use of cookies or completely prevent them from being set. If you disable cookies, please be aware that some of the features of our service may not function correctly
-
4 Information We Collect
We only collect information about you if we have a reason to do so-for example, to provide our services, to communicate with you, or to make our services better.
We are committed to maintaining the trust and confidence of our website visitors. We do not collect, sell, rent or trade email lists or any data with other companies and businesses. Have a look at our Privacy Policy page to read detail information on when and why we collect your personal information, how we use it, the limited conditions under which we may disclose it to others and how we keep it secure.
We may change Cookies and Privacy policy from time to time. This policy is effective from 24th May 2018.
Connections
SDI Video Input
1 x BNC.
SDI Rates
1.5G, 3G.
Power Input
1 x 4 pin XLR 12V.
Screen Dimensions
7" 1920 x 1200 resolution.
Screen Type
7" high brightness TFT LCD
Screen Brightness
2000 nits
Computer Interface
1 x USB type C connector for initial setup and software updates via Blackmagic Camera Setup software.
SDI Video Standards
HD Format Support
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60
SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M 2084.
Video Sampling
4:2:2 YUV.
Color Precision
10-bit.
Color Space
REC 601, REC 709.
Multiple Rate Support
SDI switches between 1.5 Gb/s HD and 3.0 Gb/s 60P HD.
Monitor Features
Controls
Dial, knobs and customizable function buttons for settings, short cut features and navigating menus.
Handles
Built in grab handles for positioning the monitor independently from the camera.
Position Adjustment Options
Variable tension pivot points for articulated arm and grab handles with forward, backward, up, down, pan and tilt adjustments.
Mounting Options
Quick release V-lock mounting bracket for attaching viewfinder to URSA Mini handle.
Tally
Large LED tally light with customizable perspex camera numbers.
Metadata Support
Detects camera information embedded in the SDI signal including status information, frame guides, focus peaking, tally, and more.
Screen Interface
On screen meters and status information including Camera ID, resolution, frames per second, shutter speed, gain, white balance, camera battery level, and more.
Operating Systems
Mac 13.0 Ventura,
Mac 14.0 Sonoma or later.
Windows 10 and 11.
Power Requirements
12V power input via 4 pin XLR connected via URSA Mini 12v power output.
Physical Specifications
Environmental Specifications
Operating Temperature
0° to 40° C (32° to 104° F)
Storage Temperature
-20° to 60° C (-4° to 140° F)
Relative Humidity
0% to 90% non-condensing
What's Included
Blackmagic URSA Studio Viewfinder G2
Warranty
1 Year Limited Manufacturer’s Warranty.
