ATEM Streaming Bridge - Blackmagic

ATEM Streaming Bridge - Blackmagic

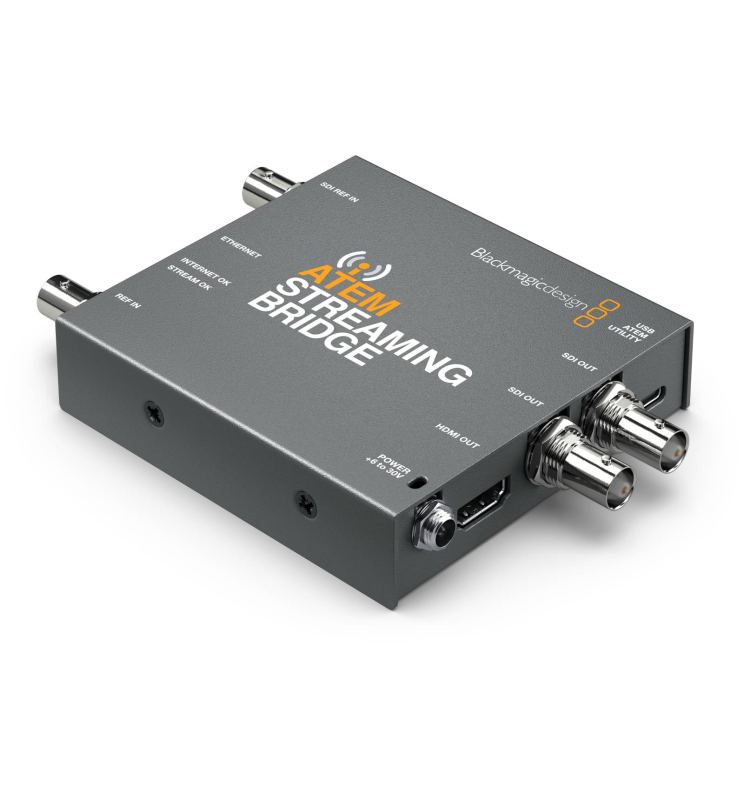

ATEM Streaming Bridge

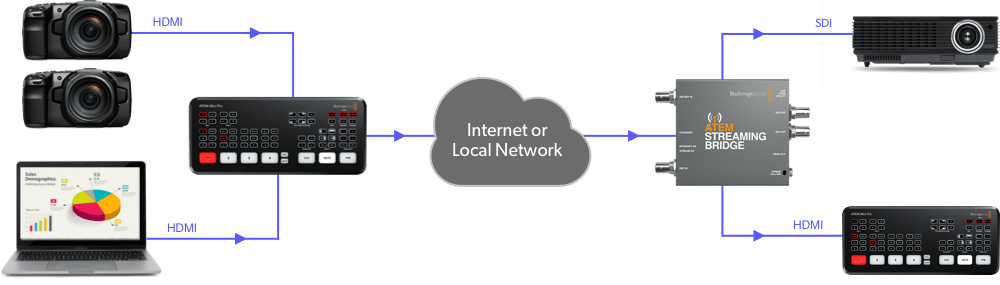

The ATEM Streaming Bridge is a video converter that allows you to receive an H.264 stream from any ATEM Mini Pro and convert it back to SDI and HDMI video. This means you can send video to remote locations on your local Ethernet network or via the Internet anywhere in the world.
This is possible because it uses advanced H.264 codecs for higher quality at very low data rates. Broadcasters and bloggers can work together to build global networks of ATEM Mini Pro television studios.

SWATEMMINISBPR
€235.00
Tax excluded
Out-of-Stock



✅Stocks are real



✅Technical Facilitator (30 years)



✅ 100% Secure Payments (CB, PayPal, Transfer, Quote)

By continuing to browse this website, You’re agreeing to our use of cookie and your personal data according to EU GDPR. View more details
I accept

Our privacy policy

Our Privacy Policy explains our principles when it comes to the collection, processing, and storage of your information. This policy specifically explains how we employ cookies, as well as the options you have to control them.

  • 1 What are cookies?

    Cookies are small pieces of data, stored in text files that are stored on your computer or other device when websites are loaded in a browser. They are widely used to "remember" you and your preferences, either for a single visit or for multiple repeat visits

  • 2 How we use cookies

    We use cookies for a number of different purposes. Some cookies are necessary for technical reasons; some enable a personalized experience for both visitors and registered users; and some allow the display of advertising from selected third party networks.

  • 3 Controlling Cookies

    Visitors may wish to restrict the use of cookies or completely prevent them from being set. If you disable cookies, please be aware that some of the features of our service may not function correctly

  • 4 Information We Collect

    We only collect information about you if we have a reason to do so-for example, to provide our services, to communicate with you, or to make our services better.

We are committed to maintaining the trust and confidence of our website visitors. We do not collect, sell, rent or trade email lists or any data with other companies and businesses. Have a look at our Privacy Policy page to read detail information on when and why we collect your personal information, how we use it, the limited conditions under which we may disclose it to others and how we keep it secure.

We may change Cookies and Privacy policy from time to time. This policy is effective from 24th May 2018.

I accept No, I do not accept

Connections

SDI Reference Inputs

1 x 3G-SDI

SDI Video Outputs

2 x 3G-SDI

SDI Audio Outputs

2 Channels embedded in HD-SDI.

HDMI Video Output

HDMI type A out.

HDMI Audio Outputs

2 Channels embedded in HDMI.

SDI Rates

1.5G, 3G.

Reference Input

Black burst and Tri‑Sync.

Ethernet

Ethernet supports 10/100/1000 BaseT.

Updates and Configuration

1 x USB Type-C for software configuration and software updates.

Zoom ATEM Streaming Bridge

Standards

SDI Video Standards

1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60

HDMI Video Standards

1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60

SDI Compliance

SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M‑B, SMPTE 425 Level A and Level B.

SDI Video Sampling

4:2:2

SDI Audio Sampling

Television standard sample rate of 48 kHz and 24 bit.

SDI Color Precision

10-bit

SDI Color Space

YUV

Streaming

Streaming Input

ATEM Streaming Bridge supports video input streamed over ethernet from ATEM Mini and ATEM SDI models.

Protocols

RTMP (Web Presenter, ATEM Mini, ATEM SDI)
SRT (Web Presenter)

Software

Internal software upgrade via updater application.

Operating Systems

Mac icon

Mac 14.0 Sonoma,
Mac 15.0 Sequoia or later.

Windows Icon

Windows 10 and 11.

Settings Control

Mini Switches or setup utility software when connected by USB.

Power Requirements

Power Supply

+12V universal power supply included with international socket adapters for all countries.

Power Consumption

6W max.

Operational Voltage Range

6 - 30V DC.

EMC Certifications

Power Supply

EMC, FCC, CE and KCC.

Physical Specifications

ATEM Streaming Bridge

Environmental Specifications

Operating Temperature

0° to 40° C (32° to 104° F)

Storage Temperature

-20° to 60° C (-4° to 140° F)

Relative Humidity

0% to 90% non‑condensing

What's Included

ATEM Streaming Bridge

12V universal power supply with international socket adapters

Warranty

1 Year Limited Manufacturer’s Warranty.
