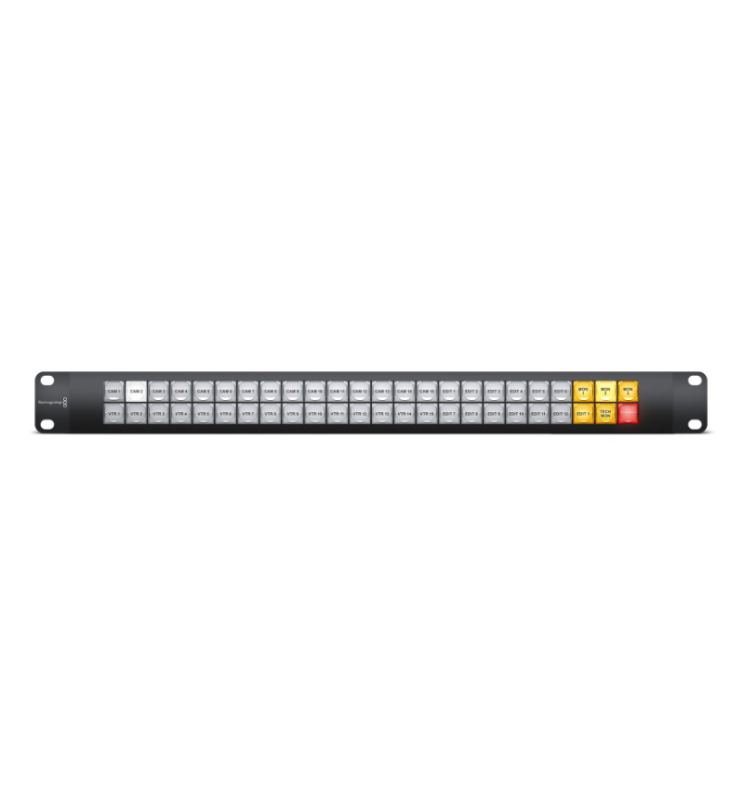

Videohub Smart Control Pro - Blackmagic
Videohub Smart Control Pro :
If you need a very fast routing, Videohub Smart Control Pro allows you to control everything by pressing a single button. Program the buttons to match only one waypoint. You can choose to program sources to multiple destinations and have a "Take" button. You can power the device via DC or the Ethernet connection.
✅Stocks are real
✅Technical Facilitator (30 years)
✅ 100% Secure Payments (CB, PayPal, Transfer, Quote)
Our privacy policy
Our Privacy Policy explains our principles when it comes to the collection, processing, and storage of your information. This policy specifically explains how we employ cookies, as well as the options you have to control them.
-
1 What are cookies?
Cookies are small pieces of data, stored in text files that are stored on your computer or other device when websites are loaded in a browser. They are widely used to "remember" you and your preferences, either for a single visit or for multiple repeat visits
-
2 How we use cookies
We use cookies for a number of different purposes. Some cookies are necessary for technical reasons; some enable a personalized experience for both visitors and registered users; and some allow the display of advertising from selected third party networks.
-
3 Controlling Cookies
Visitors may wish to restrict the use of cookies or completely prevent them from being set. If you disable cookies, please be aware that some of the features of our service may not function correctly
-
4 Information We Collect
We only collect information about you if we have a reason to do so-for example, to provide our services, to communicate with you, or to make our services better.
We are committed to maintaining the trust and confidence of our website visitors. We do not collect, sell, rent or trade email lists or any data with other companies and businesses. Have a look at our Privacy Policy page to read detail information on when and why we collect your personal information, how we use it, the limited conditions under which we may disclose it to others and how we keep it secure.
We may change Cookies and Privacy policy from time to time. This policy is effective from 24th May 2018.
Connections
Ethernet
RJ45 Ethernet In and Out. Power over ethernet supported on Ethernet In. No power over ethernet on Ethernet Out.
RS-422
In and Out (for future implementation)
Computer Interface
USB-C for configuration and software updates.
Power
100 - 240 AC
Macro Capability
Up to 10 macro buttons can be assigned to activate multiple simultaneous switching commands.
Hardware Control
48 programmable buttons and RJ45 Ethernet used for remote control of routers over an IP network.
IP Video Compliance
Precision Time Protocol
IEEE 1588‑2008 (PTP v2)
ST 2059‑1
ST 2059‑2
NMOS IS-04 Discovery and Registration
v1.3.2
Peer‑to‑peer via mDNS/DNS‑SD
NMOS IS-05 Connection Management
v1.1.2
NMOS BCP‑002‑01
Natural Grouping
NMOS BCP‑004‑01
Receiver capabilities
Software
Internal Software upgrade via included firmware updater application via USB.
Operating Systems
Mac 13.0 Ventura,
Mac 14.0 Sonoma or later.
Windows 10, 64-bit.
Windows 11.
Physical Installation
1 rack unit size. Less than 3 inches deep.
Button Configuration
Included free for Windows™ and Mac™ via USB 2.0 high speed (480Mb/s) interface.
Power Requirements
Power Fail Protection
Button configurations and router communication preserved and restored instantly at power on. Button configuration can also be saved for later recall.
Power Supply
Internal 100 - 240 V AC
Physical Specifications
Environmental Specifications
Storage Temperature
-20° to 45° C (-4° to 113° F)
Relative Humidity
0% to 90% non-condensing
What's Included
Videohub Smart Control Pro
Warranty
1 Year Limited Manufacturer’s Warranty.
VHUB/WSC/PRO
Videohub Smart Control Pro :
If you need a very fast routing, Videohub Smart Control Pro allows you to control everything by pressing a single button. Program the buttons to match only one waypoint. You can choose to program sources to multiple destinations and have a "Take" button. You can power the device via DC or the Ethernet connection.
