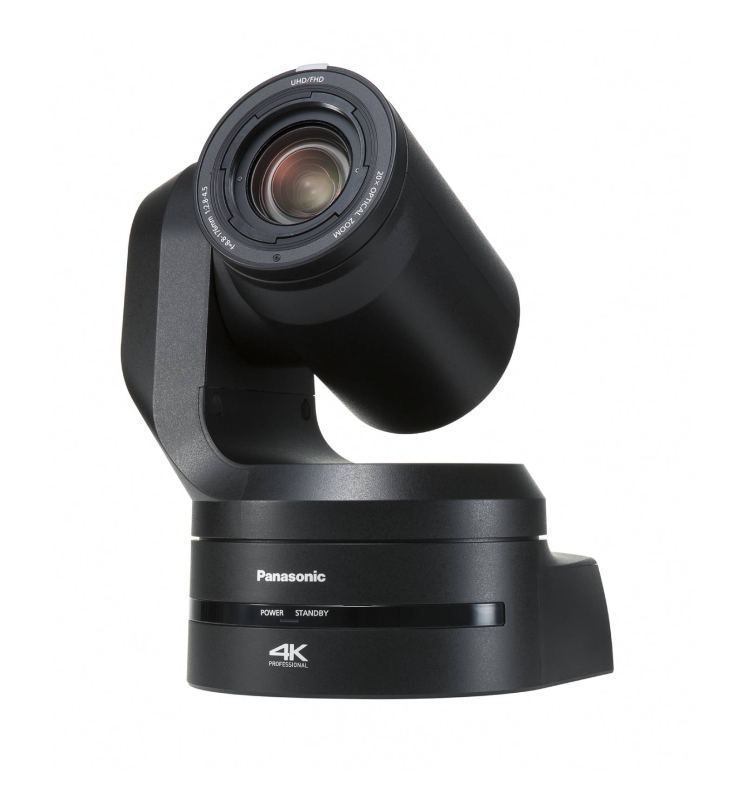

AW-UE150 4K Professional PTZ Camera - Panasonic

AW-UE150 4K Professional PTZ Camera - Panasonic

Caméra AW-UE150A  :

Panasonic AW-UE150AKE9 - 4K Integrated PTZ Camera with INTEGRATED AUTO-TRACKING, Black version (requires additional 12V 4A power supply)

• Built-in auto-tracking function for flexible shooting

• 4K/UHD (3840 x 2160) remote camera, with support for UHD and HD shooting formats

• 1.0-type single MOS Sensor with high sensitivity supporting HDR(HLG) and BT2020 color gamut

• Built-in optical low-pass filter reducing Morié pattern

• Wide angle shooting 75.1° horizontally

• High magnification zoom 20x (optical), 32x intelligent zoom and up to 40x in HD mode

• Multiple interfaces: 12G-SDI, 2x 3G-SDI, HDMI, IP, Optical and G/L in

• Supports NDI High Bandwidth UHD or HD resolution or NDI|HX2 at HD resolution

• HD Crop feature : allows to output 2 different video outputs at the same time (1 wide, 1 zoomed)

• New PTZ Sync mode syncronising Pan, Tilt and Zoom axis movement

• Support for POE++

• Requires additional 12V 4A power supply, not compatible with AW-PS550 and AW-PS551, and compatible with IDX-IA70AXLR

New
AW-UE150AKE9
Color: Black
€10,200.00
Tax excluded
On Request



✅Stocks are real



✅Technical Facilitator (30 years)



✅ 100% Secure Payments (CB, PayPal, Transfer, Quote)

By continuing to browse this website, You’re agreeing to our use of cookie and your personal data according to EU GDPR. View more details
I accept

Our privacy policy

Our Privacy Policy explains our principles when it comes to the collection, processing, and storage of your information. This policy specifically explains how we employ cookies, as well as the options you have to control them.

  • 1 What are cookies?

    Cookies are small pieces of data, stored in text files that are stored on your computer or other device when websites are loaded in a browser. They are widely used to "remember" you and your preferences, either for a single visit or for multiple repeat visits

  • 2 How we use cookies

    We use cookies for a number of different purposes. Some cookies are necessary for technical reasons; some enable a personalized experience for both visitors and registered users; and some allow the display of advertising from selected third party networks.

  • 3 Controlling Cookies

    Visitors may wish to restrict the use of cookies or completely prevent them from being set. If you disable cookies, please be aware that some of the features of our service may not function correctly

  • 4 Information We Collect

    We only collect information about you if we have a reason to do so-for example, to provide our services, to communicate with you, or to make our services better.

We are committed to maintaining the trust and confidence of our website visitors. We do not collect, sell, rent or trade email lists or any data with other companies and businesses. Have a look at our Privacy Policy page to read detail information on when and why we collect your personal information, how we use it, the limited conditions under which we may disclose it to others and how we keep it secure.

We may change Cookies and Privacy policy from time to time. This policy is effective from 24th May 2018.

I accept No, I do not accept

General -> Power Requirements DC12 V(10.8 V to 24.0 V)
General -> PoE IEEE802.3 bt standard : DC42 V to 57 V (Software authentication (LLDP) is supported).
General -> Current Consumption 4.0 A (XLR IN connector), 1.2 A (PoE++ power supply)
General -> Ambient Operating Temperature 0 °C to 40 °C (32 °F to 104 °F)
General -> Ambient Operating Humidity 20 % to 90 % (no condensation)
General -> Storage Temperature –20 °C to 50 °C (–4 °F to 122 °F)
General -> Weight Approx. 4.3 kg (9.48 lbs) (excluding mount bracket)
General -> Dimensions 213 mm x 267 mm x 219 mm (8-3/8 inches x 10-1/2 inches x 8-5/8 inches)
(excluding protrusions, cable cover,direct ceiling mount bracket)
General -> Finish AW-UE150AW: Pearl white
AW-UE150AK: Black
General -> Controller Supported AW-RP150GJ、AW‑RP60GJ、AK-HRP1010GJ*1、AK-HRP1015GJ*1、AK-HRP1000GJ*1、AK‐HRP1005GJ*1、AK‑HRP250GJ*1
Camera Unit -> Imaging Sensor 1-type 4K MOSx1
Camera Unit -> Effective Pixels Approx　20,180,000 pixel
Camera Unit -> Zoom ・Optical zoom: 20x
・i.Zoom: UHD 24x, FHD 32x
Camera Unit -> Lens Motorized Optical 20x zoom, F2.8 to F4.5
[f=8.8 mm (11/32 inches) to 176.0 mm (6‑15/16 inches);
35 mm (1‑3/8 inches) equivalent: 24.5 mm (31/32 inches) to 490.0 mm (19‑9/32 inches)]
Camera Unit -> Conversion Lens Not supported
Camera Unit -> Angle of View Range Horizontal angle of view: 75.1° (wide) to 4.0° (tele)
Vertical angle of view: 46.7° (wide) to 2.3° (tele)
Diagonal angle of view: 82.8° (wide) to 4.6° (tele)
Camera Unit -> Optical Filter -> ND Filter Through, 1/4, 1/16, 1/64, IR through (IR through is used as “Night mode”)
Camera Unit -> Focus Switching between auto and manual
Camera Unit -> Focus Distance Entire zooming range: 1000 mm (3.3 ft)
Wide end: 100 mm (0.33 ft)
Camera Unit -> Color Separation Optical System 1MOS
Camera Unit -> Standard Sensitivity F9, 2000 lx
Camera Unit -> Minimum Illumination 2 lx (F2.8, 59.94p, 50IRE, 42 dB, without accumulation)
Camera Unit -> Horizontal Resolution 2,000 TV lines Typ (Center area)
Camera Unit -> Gain Selection Auto, -3 dB to 36 dB
・1 dB step increments can be set.
Super Gain function equipped : +37 dB to 42 dB
Camera Unit -> Frame Mix 0 dB, 6 dB, 12 dB, 18 dB, 24 dB
Camera Unit -> Electronic Shutter Speed -> 59.94p/59.94i 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
Camera Unit -> Electronic Shutter Speed -> 50p/50i 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
Camera Unit -> Electronic Shutter Speed -> 29.97p 1/30, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
Camera Unit -> Electronic Shutter Speed -> 25p 1/25, 1/50, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
Camera Unit -> Electronic Shutter Speed -> 23.98p/24p 1/24, 1/48, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
Camera Unit -> Synchro Scan -> 59.94p/59.94i 60.00 Hz to 7200 Hz
Camera Unit -> Synchro Scan -> 50p/50i 50.00 Hz to 7200 Hz
Camera Unit -> Synchro Scan -> 29.97p 30.00 Hz to 7200 Hz
Camera Unit -> Synchro Scan -> 25p 25.00 Hz to 7200 Hz
Camera Unit -> Synchro Scan -> 23.98p/24p 24.00 Hz to 7200 Hz
Camera Unit -> Gamma HD / FILMLIKE1 / FILMLIKE2 / FILMLIKE3/ FILM REC / VIDEO REC
Camera Unit -> White Balance ATW : 3200K, 5600K
・ATW Speed 3-stage variables
AWB : AWB-A / AWB-B
VAR (selectable between 2000K and 15000K by designating a value)
Camera Unit -> Chroma Amount Variability OFF, –99 % to 99 %
Camera Unit -> Scene File Scene1, Scene2, Scene3, Scene4
Camera Unit -> Output Format(UHD/FHD SDI) -> 4K *3 2160/59.94p、2160/50p、2160/29.97p(Native)、2160/25p(Native)、2160/24p(Native)、2160/23.98p(Native)
Camera Unit -> Output Format(UHD/FHD SDI) -> HD *3 1080/59.94p、1080/50p、1080/29.97p(Native)、1080/25p(Native)、1080/24p(Native)、1080/23.98p(Native)、1080/59.94i、1080/50i、720/59.94p、720/50p
Camera Unit -> Output Format(UHD/FHD Fiber) -> 4K *3 2160/59.94p、2160/50p、2160/29.97p(Native)、2160/25p(Native)、2160/24p(Native)、2160/23.98p(Native)
Camera Unit -> Output Format(UHD/FHD Fiber) -> HD *3 1080/59.94p、1080/50p、1080/29.97p(Native)、1080/25p(Native)、1080/24p(Native)、1080/23.98p(Native)、1080/59.94i、1080/50i、720/59.94p、720/50p
Synchronization System Internal/External synchronization (BBS/Tri-level sync)
Input Connector -> G/L IN ・BBS (Black Burst Sync), tri-level sync supported
Input Connector -> MIC/LINE Input MIC/LINE input compatible (SDI/HDMI/IP)
AAC compatible (compatible with IP only)
ø 3.5 mm stereo mini jack (unbalanced)
・During MIC input
Input level: –40 dBV (0 dB=1 V/Pa, 1 kHz)
Plug-in power compatible,
supply voltage: 2.5 V ± 0.5 V
Input impedance:
Approx. 2 kΩ (When plug-in power is ON)
Approx. 20 kΩ (When plug-in power is OFF)
・During LINE input
Input level: –10 dBV
Input impedance: Approx. 3 kΩ
・Input volume variable range:
–36 dB to 12 dB (3 dB step)
・Embedded audio output level:
–12 dBFS
・Sampling frequency:
48 kHz
・Quantization bit rate:
24bit (SDI, HDMI), 16bit (IP)
Output Connector -> HDMI HDMI 2.0 connector
4:2:2/10bit
・HDCP is not supported.
・Viera Link is not supported.
Output Connector -> 12G-SDI OUT SMPTE 2082-1/SMPTE 2081-1/SMPTE 424M /SMPTE 292M / 75 Ω(BNC×1)
・Level-A/Level-B supported
Output Connector -> 3G-SDI OUT1 SMPTE 424M /SMPTE 292M / 75 Ω(BNC×1)
・Level-A/Level-B supported
Output Connector -> 3G-SDI OUT2/PM SMPTE 424M /SMPTE 292M / 75 Ω(BNC×1)
・Level-A/Level-B supported
Output Connector -> SFP+ SFP+ standard
The signal sent is the same as 12G SDI OUT.
・This unit does not support input by optical signals
・Use a module conforming to the MSA specification.
Input/Output Connector -> LAN LAN connector for IP control (RJ‑45)
Input/Output Connector -> RS-422 CONTROL IN RS-422A (RJ‑45)
Pan-tilt Head Unit -> IP connecting cable ・When there is a PoE++ Ethernet hub
LAN cable*4 (category 5e or above, straight cable), max. 100 m (328 ft)
・When there is no PoE++ Ethernet hub
LAN cable*4 (category 5e or above, straight cable), max. 100 m (328 ft)
Pan-tilt Head Unit -> AW protocol connecting cable LAN cable*4 (category 5e or above, straight cable), max. 1000 m (3280 ft)
・Use category 6 or better for 4K video transmissions.
Pan-tilt Head Unit -> Installation Method *4 Stand-alone (Desktop) or suspended (Hanging)
・To ensure safety, the unit must be secured using the mount bracket supplied.
Pan-tilt Head Unit -> Pan/tilt Operation Speed Speed range: 0.08°/s to 180°/s (During manual operation)
・3 speed modes installed
Normal: 60°/s, Fast1: 90°/s, Fast2: 180°/s
・Note that the operating noise may be loud in high speed.
・If the operating noise is disturbing, use the Normal mode.
Pan-tilt Head Unit -> Panning Range ±175°
Pan-tilt Head Unit -> Tilting range –30° to 210°
・Depending on the pan or tilt position, the camera may be reflected in the image.
Pan-tilt Head Unit -> Quietness NC35 or less (Up to 60°/s in Normal mode)
Supported Operating Systems and Web Browsers -> Windows *6 Microsoft® Windows® 10
Microsoft® Windows® 11
Microsoft Edge
Google Chrome
Supported Operating Systems and Web Browsers -> Mac *6 macOS 14
macOS 13
macOS 12
Safari
Google Chrome
Supported Operating Systems and Web Browsers -> iPhone/iPad *9 iOS
iPadOS
Safari
Supported Operating Systems and Web Browsers -> Android *9 Android OS
Google Chrome
IP Streaming -> Image Streaming Mode JPEG (MJPEG), H.264, H.265,NDI® HX2,NDI® High Bandwidth
IP Streaming -> Image Resolution 3840x2160, 1920x1080, 1280x720, 640x360, 320x180
IP Streaming -> Image Transmission Setting (JPEG) Frame Rate: Maximum 30 fps
Image quality (Fine / Normal)
IP Streaming -> Image Transmission Setting (H.264) -> Transmission Type Unicast port (AUTO)
Unicast port (MANUAL)
Multicast port
IP Streaming -> Image Transmission Setting (H.264) -> Transmission mode Constant bit rate
Frame rate
Best effort
IP Streaming -> Image Transmission Setting (H.264) -> Frame Rate [60Hz] 5fps / 15fps / 30fps / 60fps (UHD: 30fps, 60fps)
[50Hz] 5fps / 12.5fps / 25fps / 50fps (UHD: 25fps, 50fps)
IP Streaming -> Image Transmission Setting (H.264) -> Max Bit Rate 512kbps / 768kbps / 1024kbps / 1536kbps / 2048kbps / 3072kbps / 4096kbps /6144kbps / 8192kbps / 10240kbps
12288kbps / 14336kbps / 16384kbps / 20480kbps / 24576kbps / 32768kbps / 40960kbps / 51200kbps / 76800kbps
IP Streaming -> Image Transmission Setting (H.265) -> Transmission Type Unicast port (AUTO)
Unicast port (MANUAL)
Multicast port
IP Streaming -> Image Transmission Setting (H.265) -> Frame Rate [60Hz] 30fps/60fps
[50Hz] 25fps/50fps
IP Streaming -> Image Transmission Setting (H.265) -> Max Bit Rate 512kbps/768kbps/1024kbps/1536kbps/2048kbps/3072kbps/4096kbps/6144kbps/8192kbps/10240kbps/12288kbps/14336kbps
IP Streaming -> Audio Compression Format AAC-LC, 48 kHz / 16 bit / 2ch
IP Streaming -> Supported Protocol -> IPv6 TCP／IP、UDP／IP、HTTP、HTTPS、DNS、NTP、
　　SNMP、DHCPv6、RTP、MLD、ICMP、ARP、RTMP
IP Streaming -> Supported Protocol -> IPv4 TCP／IP、UDP／IP、HTTP、HTTPS、RTSP、
　　RTP、RTP／RTCP、DHCP、DNS、DDNS、NTP、SNMP、
　　UPnP、IGMP、ICMP、ARP、RTMP、RTMPS、SRT
NDI® Support -> NDI® Support NDI® HX2,NDI® High Bandwidth
NDI® Support -> Output Format (NDI® High bandwidth) -> 4K 2160/59.94p、2160/50p、2160/29.97p、2160/25p、2160/24p、2160/23.98p
NDI® Support -> Output Format (NDI® High bandwidth) -> HD 1080/59.94p、1080/50p、1080/29.97p、1080/25p、1080/24p、1080/23.98p、720/59.94p、720/50p
NDI® Support -> Image Resolution (NDI® HX2) 1920x1080，1280x720
NDI® Support -> Image Streaming Setting (NDI® High bandwidth) -> Transmission Type TCP/UDP
Unicast/Multicast
NDI® Support -> Image Streaming Setting (NDI® High bandwidth) -> Max Bit Rate Max 250 Mbps
NDI® Support -> Image Streaming Setting (NDI® HX2) -> Transmission Type Unicast port (AUTO)
Unicast port (MANUAL)
Multicast port
NDI® Support -> Image Streaming Setting (NDI® HX2) -> Flame rate [60Hz] 5fps / 15fps / 30fps / 60fps (UHD:30fps / 60fps)
[50Hz] 5fps / 12.5fps / 25fps / 50fps (UHD:25fps / 50fps)
NDI® Support -> Image Streaming Setting (NDI® HX2) -> Max Bit Rate 512kbps / 768kbps / 1024kbps / 1536kbps / 2048kbps / 3072kbps /4096kbps / 6144kbps / 8192kbps / 10240kbps / 12288kbps / 14336kbps / 16384kbps / 20480kbps / 24576kbps
NDI® Support -> Audio Compression Type (NDI® High bandwidth) AAC, 48 kHz, 2 ch
NDI® Support -> Audio Compression Type (NDI® HX2) AAC-LC, 48 kHz,16 bit, 2 ch
Other Function -> Tally LED Display Color red / green /　yellow
Description de la note de bas de page
  1. Future support planned
  2. This cannot be configured when the format is 2160/29.97p, 2160/23.98p, 2160/24p, 2160/25p, 1080/29.97p, 1080/25p.
  3. When selecting formats for UHD SDI, HDMI, and Fiber, it is not possible to select different formats for each of them. Furthermore, the formats for FHD SDI and 3G SDI OUT2 are fixed to the formatting method selected for UHD SDI and HDMI.
  4. Use of an STP (shielded twisted pair) cable is recommended.
  5. Category 6 or more is used when sending 4K images.
* NDI® is a video connectivity technology and is registered as a trademark by Vizrt NDI AB in the United States and other countries.
AW-UE150AKE9
New

Specific References

ean13
5025232991273
mpn
AW-UE150AKE9
