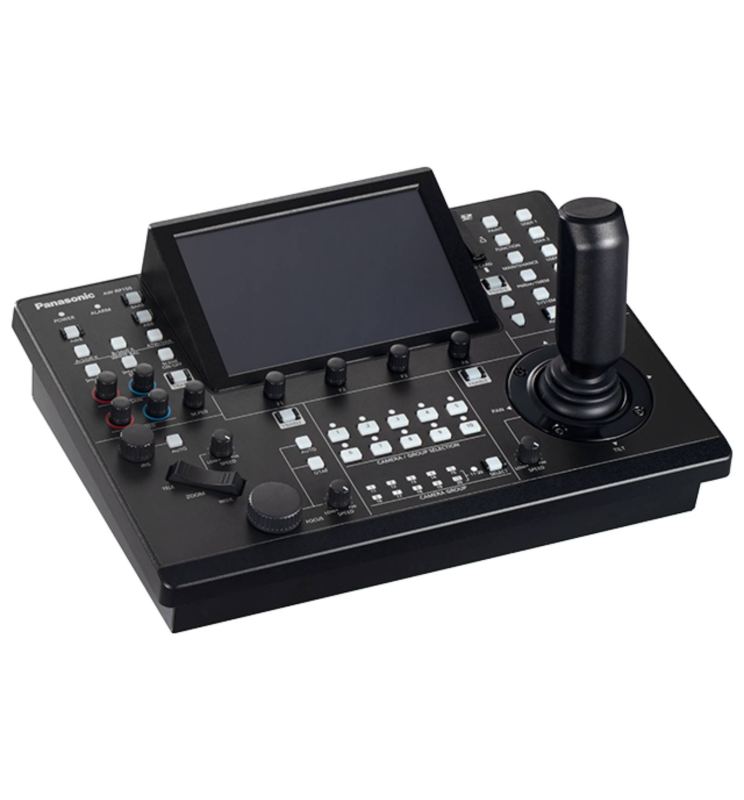

The RP150GJ5 is a remote control unit.

Panasonic AW-RP150G5 - Remote camera controller  (requires additional 12V power supply like AW-PS551E)

• A seesaw lever mounted on the joystick manages pan and tilt operations for zoom and focus control and

   intuitive single-handed operation.

• The built-in touch display allows for easy and quick operation of all essential camera functions, like display

   status, menu selection, preset operations and indicators.

• 2 GPIO’s

• 3G-SDI active thru outputs

• RS-422A

• Lan(PoE+ powersupply/XLR4 pin +12v Power)

• (excl. AW-PS551E Power Supply)

AW-RP150GJ5
€4,967.00
Tax excluded
On Request



✅Stocks are real



✅Technical Facilitator (30 years)



✅ 100% Secure Payments (CB, PayPal, Transfer, Quote)

By continuing to browse this website, You’re agreeing to our use of cookie and your personal data according to EU GDPR. View more details
I accept

Our privacy policy

Our Privacy Policy explains our principles when it comes to the collection, processing, and storage of your information. This policy specifically explains how we employ cookies, as well as the options you have to control them.

  • 1 What are cookies?

    Cookies are small pieces of data, stored in text files that are stored on your computer or other device when websites are loaded in a browser. They are widely used to "remember" you and your preferences, either for a single visit or for multiple repeat visits

  • 2 How we use cookies

    We use cookies for a number of different purposes. Some cookies are necessary for technical reasons; some enable a personalized experience for both visitors and registered users; and some allow the display of advertising from selected third party networks.

  • 3 Controlling Cookies

    Visitors may wish to restrict the use of cookies or completely prevent them from being set. If you disable cookies, please be aware that some of the features of our service may not function correctly

  • 4 Information We Collect

    We only collect information about you if we have a reason to do so-for example, to provide our services, to communicate with you, or to make our services better.

We are committed to maintaining the trust and confidence of our website visitors. We do not collect, sell, rent or trade email lists or any data with other companies and businesses. Have a look at our Privacy Policy page to read detail information on when and why we collect your personal information, how we use it, the limited conditions under which we may disclose it to others and how we keep it secure.

We may change Cookies and Privacy policy from time to time. This policy is effective from 24th May 2018.

I accept No, I do not accept

General -> Power Requirements 12 V DC (10.8 V to 13.2 V)
General -> PoE PoE+
DC 42 V to 57 V (Camera Input,)
General -> Current Consumption 1.0 A (Connector Input), 0.6 A (PoE+ power supply)
General -> Ambient Operating Temperature 0 °C to 40 °C (32 °F to 104 °F)
General -> Ambient Operating Humidity 10 % to 90 % (no condensation)
General -> Storage Temperature -20 °C to 50 °C (-4 °F to 122 °F)
General -> Weight Approx. 3.2 kg (7.05 lb)
General -> Dimensions W 342 mm x H 178 mm x D 245 mm
(13-15/32 inches x 7 inches x 9-21/32 inches)
(excluding protrusions)
Input Connector -> DC IN DC 12 V IN, XLR 4‑pin
Input Connector -> 3G-SDI IN SMPTE424M/SMPTE292 / 75 Ω (BNC x 1)
Supported formats:
1080/59.94p*2, 1080/50p*3, 1080/59.94i, 1080/50i, 1080/23.98p, 1080/25p, 1080/23.98PsF, 1080/25PsF
Output Connector -> 3G-SDI ACTIVE THROGH OUT SMPTE424M/SMPTE292 / 75 Ω (BNC x 1)
Supported formats:
1080/59.94p*2, 1080/50p*3, 1080/59.94i, 1080/50i, 1080/23.98p, 1080/25p, 1080/23.98PsF, 1080/25PsF
Input/Output Connector -> LAN（IP CONT） 100BASE‑TX
PoE+ input
Connection cable: LAN cable, max. 100 m (328 ft)
• When connecting the unit via a switching hub: Straight cable or a cross cable (category 5 cable), STP (Shielded Twisted Pair) cable recommended
• When connecting the unit directly: Crossover cable (category 5 cable), STP (Shielded Twisted Pair) cable recommended
Input/Output Connector -> LAN（SERIAL CONT) RS‑422 (control signals for remote cameras)
Connecting cable:
Straight cable (category 5e or better shielded cable), max. 1000 m (3280 ft)
Input/Output Connector -> TALLY OUT Open collector output (negative logic)
Maximum voltage resistance DC 24 V, Maximum current 50 mA
Input/Output Connector -> TALLY / GPIO 1 D‑sub 25‑pin, female, inch thread
TALLY IN : 10 inputs (for receiving photocoupler signals)
GPI : 6 inputs (for receiving photocoupler signals)
GPIO : 5 inputs (for receiving photocoupler signals) or 5 outputs (open collector outputs, negative logic)
• Input/output switched with menu settings
Input/Output Connector -> GPIO 2 D‑sub 25‑pin, female, inch thread
GPI : 10 inputs (for receiving photocoupler signals)
GPIO : 10 inputs (for receiving photocoupler signals) or 10 outputs (open collector outputs, negative logic)
• Input/output switched with menu settings
Reserve connectors: 2 connectors (For future expansion feature)
Input/Output -> LCD Display 7-inch Touch Panel GUI Monitor (WVGA(800×480))
Input/Output -> SD Memory Card Slot SDHC / SDXC Memory Card Slot x 1
Connection Specifications -> No. of Connectable Cameras 200 (IP), 5 (RS422)
Connection Specifications -> No. of Camera Selection Buttons 10
Connection Specifications -> No. of Camera Groups 20 (10 units per 1 group)
Memory -> Preset Memory No. of memory presets 100
Memory -> Tracing Memory No. of cameras: Cam1 to Cam10
Recording time, no. of memory settings: Maximum 5 min. total per camera, maximum of 10 settings per camera
Other Functions -> No. of User Assignable Buttons 6 + up to 10 on the LCD menu
Other Functions -> Pan / Tilt Speed Adjustment 7 levels
Other Functions -> TALLY LED Display Color: green / red
AW-RP150GJ5
