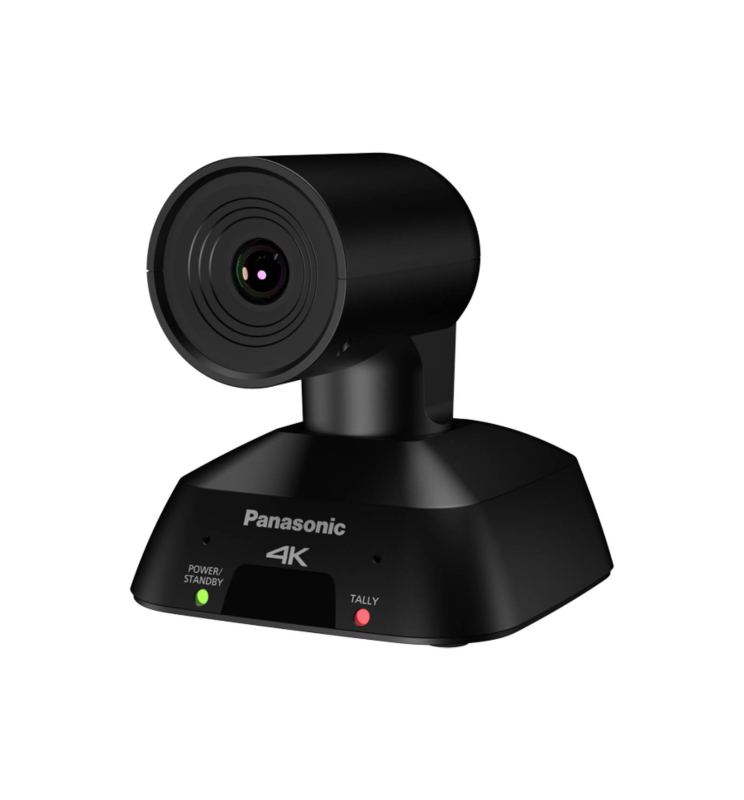

copy of AW-UE4 4K/HD Camera - Panasonic

copy of AW-UE4 4K/HD Camera - Panasonic

AW-UE5 4K Camera

Compact 4K ultra-wide-angle ePTZ camera delivering high-quality video output, ideal for live production. The AW-UE5 is perfectly suited for spaces of all sizes; its wide viewing angle makes it ideal for huddle spaces or esports production.

  • Ultra-wide-angle lens – Newly designed sensor and ultra-wide-angle lens with a 121° horizontal field of view (HFOV)
  • Ultra-4K output
  • 4K at 60/50 fps in high-frame-rate 4K mode
  • NDI|HX3/HX2 IP streaming
  • HDMI/USB/IP interfaces with simultaneous output
  • AI-based smart functions: group framing, preset framing
  • Controllable via Panasonic AW-RM50A and AW-RP60/150/200 PTZ controllers
New
AW-UE5KG
Color: Black
€1,250.00
Tax excluded
On Request



✅Stocks are real



✅Technical Facilitator (30 years)



✅ 100% Secure Payments (CB, PayPal, Transfer, Quote)

By continuing to browse this website, You’re agreeing to our use of cookie and your personal data according to EU GDPR. View more details
I accept

Our privacy policy

Our Privacy Policy explains our principles when it comes to the collection, processing, and storage of your information. This policy specifically explains how we employ cookies, as well as the options you have to control them.

  • 1 What are cookies?

    Cookies are small pieces of data, stored in text files that are stored on your computer or other device when websites are loaded in a browser. They are widely used to "remember" you and your preferences, either for a single visit or for multiple repeat visits

  • 2 How we use cookies

    We use cookies for a number of different purposes. Some cookies are necessary for technical reasons; some enable a personalized experience for both visitors and registered users; and some allow the display of advertising from selected third party networks.

  • 3 Controlling Cookies

    Visitors may wish to restrict the use of cookies or completely prevent them from being set. If you disable cookies, please be aware that some of the features of our service may not function correctly

  • 4 Information We Collect

    We only collect information about you if we have a reason to do so-for example, to provide our services, to communicate with you, or to make our services better.

We are committed to maintaining the trust and confidence of our website visitors. We do not collect, sell, rent or trade email lists or any data with other companies and businesses. Have a look at our Privacy Policy page to read detail information on when and why we collect your personal information, how we use it, the limited conditions under which we may disclose it to others and how we keep it secure.

We may change Cookies and Privacy policy from time to time. This policy is effective from 24th May 2018.

I accept No, I do not accept

General -> Power Requirements DC 5 V±5 % (4.75 V to 5.25 V)
General -> PoE IEEE802.3at compliant: DC37 V to 57 V
General -> Current Consumption 3.0A (USB input), 0.3A (PoE power supply)
General -> Ambient Operating Temperature 0 °C to 40 °C (32 °F to 104 °F)
General -> Ambient Operating Humidity 20 % to 90 % (no condensation)
General -> Storage Temperature –20 °C to 50 °C (–4 °F to 122 °F)
General -> Weight Approx. 0.5 kg (1.1 lb) (excluding mount bracket)
General -> Dimensions W 123 mm x H 131 mm x D 139 mm　 (4-53/64 inches x 5-5/32 inches x 5-15/32 inches)
(excluding protrusions, mount bracket)
General -> Finish AW-UE5WG：White
AW-UE5KG：Black
General -> Controller Supported AW-RP60*1, AW-RP150*1, AW-RP200*1,AW-RM50AG
Camera Unit -> Imaging Sensor 1/2.8-type MOSx1
Camera Unit -> Zoom Digital Zoom: Up to 5x
Camera Unit -> Lens F2.45 (f=1.64 mm, 35mm conversion: 11.1mm)
Camera Unit -> Angle of View Range LDC Off: Horizontal field of view 121.8°, vertical field of view 87.8°, diagonal field of view 129.5°
Camera Unit -> Focus Single focus
Camera Unit -> Focus Distance 300mm (0.98ft)
Camera Unit -> Horizontal Resolution -> 4K 1,400 TV typ (HDMI Output, center area)
Camera Unit -> Horizontal Resolution -> HD 900 TV typ (HDMI Output, center area)
Camera Unit -> Gain Selection Auto, 0 to 42 dB Can be set in 3 dB increments
Camera Unit -> Electronic Shutter Speed -> FullAuto Full Auto Mode with Slow Shutter On / Shutter Priority Mode
1/1, 1/2, 1/5, 1/10, 1/20, 1/30, 1/60, 1/120, 1/240, 1/480, 1/1000, 1/2000, 1/4000, 1/8000, 1/16000 [60Hz/59.94Hz]
1/1, 1/2, 1/5, 1/10, 1/20, 1/25, 1/50, 1/100, 1/250,1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/16000 [50Hz]
Camera Unit -> Electronic Shutter Speed -> Auto Full Auto Mode with Slow Shutter Off
1/60, 1/120, 1/240, 1/480, 1/1000, 1/2000, 1/4000, 1/8000, 1/16000 [60Hz/59.94Hz]
1/50, 1/100, 1/250,1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/16000 [50Hz]
Camera Unit -> Electronic Shutter Speed -> Manual 1/1, 1/2, 1/5, 1/10, 1/20, 1/30, 1/60, 1/120, 1/240, 1/480, 1/1000, 1/2000, 1/4000, 1/8000, 1/16000 [60Hz/59.94Hz]
1/1, 1/2, 1/5, 1/10, 1/20, 1/25, 1/50, 1/100, 1/250,1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/16000 [50Hz]
Camera Unit -> White Balance ATW, AWB A, AWB B, 3200K, 5600K
Camera Unit -> Chroma Amount Variability 11 steps (0 to 10)
Camera Unit -> Color Bar [60Hz/59.94Hz]：SMPTE
[50Hz]：FULL
Camera Unit -> Output Format (HDMI) -> 4K 2160/60p*2、2160/59.94p*2、2160/50p*2、2160/30p*3、2160/29.97p*3、2160/25p*3
Camera Unit -> Output Format (HDMI) -> HD 1080/60p*3、1080/59.94p*3、1080/50p*3
1080/30p*3、1080/29.97p*3、1080/25p*3
720/60p*3、720/59.94p*3、720/50p*3
Output Connector -> HDMI HDMI Connector
・HDCP is not supported.
・Viera Link is not supported.
Input/Output Connector -> LAN LAN terminal for IP control (RJ-45)
Input/Output Connector -> USB Type-C connector
Pan-tilt Head Unit -> IP connecting cable ・When a PoE ethernet hub is used: LAN cable*4(category 5e or above), max. 100 m (328 ft)
・When a PoE ethernet hub is not used: LAN cable*4(category 5 or above), max.100 m (328 ft)
Pan-tilt Head Unit -> Installation Method Stand-alone (Desktop) or suspended (Hanging)*5
Pan-tilt Head Unit -> Panning Range ±110° (manual)
Pan-tilt Head Unit -> Tilting range ±25° (manual)
Supported Operating Systems and Web Browsers -> Windows Windows 11
Microsoft Edge
Chrome
Supported Operating Systems and Web Browsers -> Mac macOS 15
macOS 14
macOS 13
Safari
Chrome
IP Streaming -> Image Streaming Mode MJPEG (HTTP), H.264 (RTSP/RTMP/RTMPS), H.265 (RTSP), NDI® HX*6
IP Streaming -> Image Resolution [MJPEG]
1280x720
[H.264/H.265]
3840x2160, 1920x1080，1280x720, 640x360
IP Streaming -> Image Transmission Setting (MJPEG) -> Frame Rate [60Hz/59.94Hz]Maximum 30fps
[50Hz]Maximum 25fps
IP Streaming -> Image Transmission Setting (H.264) -> Frame Rate [60Hz/59.94Hz]30fps/60fps
[50Hz]25fps/50fps
IP Streaming -> Image Transmission Setting (H.265) -> Frame Rate [60Hz/59.94Hz]30fps/60fps
[50Hz]25fps/50fps
IP Streaming -> Audio Compression Format AAC-LC, 48 kHz / 16 bit / 2ch
USB web camera -> Image output USBVideoClassVer1.1
USB web camera -> Image output type YUV、MJPEG
USB web camera -> Image resolution -> YUV 1280x720, 640x360
USB web camera -> Image resolution -> MJPEG 3840x2160, 1920x1080，1280x720，640x360
USB web camera -> Audio Output USB Audio Class Ver1.0
USB web camera -> Audio Compression Format Linear PCM, 48KHz/16bit/2ch
Internal Mic -> Internal Mic Stereo microphone
Internal Mic -> Audio On/Off Available (mute function)
Internal Mic -> ALC Function Available
Description de la note de bas de page
  1. Future support planned
  2. Only available when Priority mode is 4K High Frame Rate
  3. Only available when Priority mode is ePTZ/AI
  4. Use of an STP (shielded twisted pair) cable is recommended.
  5. To ensure safety, the unit must be secured using the mount bracket supplied.
  6. NDI® is a video connectivity technology and is registered as a trademark by Vizrt NDI AB in the United States and other countries.
AW-UE5KG
New

Specific References

ean13
4010869328425
mpn
AW-UE5KG
