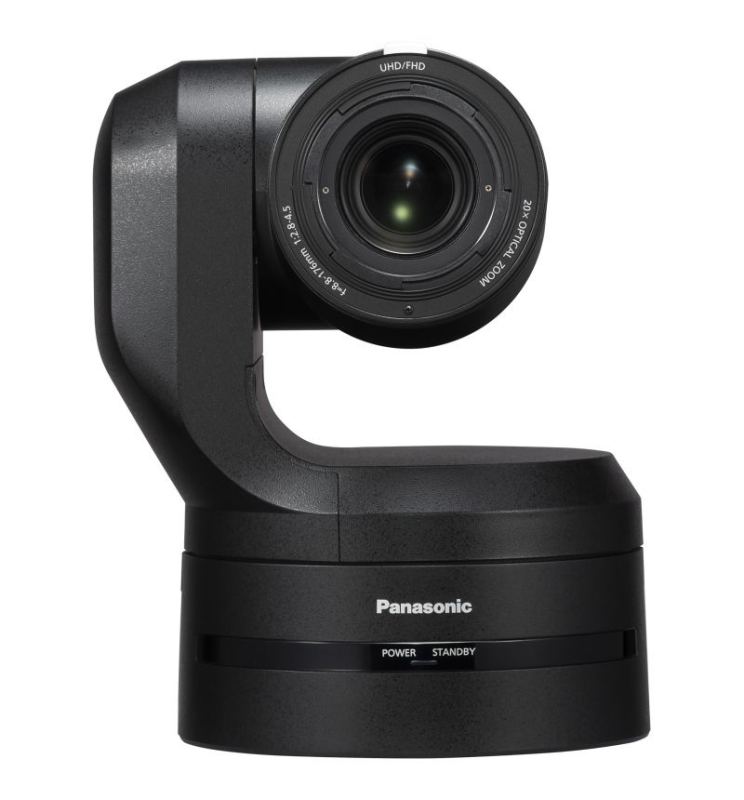

AW-HE145KEJ Caméra robotisée Full HD - Panasonic
Une caméra AW-HE145KEJ robotisée HD permettant d’obtenir des images de haute qualité, même dans des environnements sombres.
- Haute sensibilité grâce au capteur grand format de type 1 pouce
- Zoom optique 20 x / prise de vue grand angle 75,1°
- Mouvements PTZ fluides et précis
- Production vidéo de haute qualité, même dans des environnements sombres
- Prise en charge du SRT pour une transmission vidéo stable
Nouveau
✅Stock réel
➡️Products marked as in stock, are in our Warehouse
✅Intégrateur Broadcast depuis +30ans
➡️Broadcast & Video Services
✅Paiements 100% Sécurisés (CB, PayPal, Virement, Devis)
Notre politique de confidentialité
Notre politique de confidentialité décrit nos principes en matière de collecte, de traitement et de stockage de vos informations. Elle précise également l’utilisation que nous faisons des cookies et les options dont vous disposez pour les gérer.
-
1 Qu'est-ce qu'un cookie ?
Les cookies sont de petits fichiers de données, enregistrés sous forme de fichiers texte sur votre ordinateur ou tout autre appareil lorsque des sites web sont consultés via un navigateur. Ils sont couramment utilisés pour mémoriser vos préférences et informations, que ce soit pour une seule visite ou pour plusieurs visites répétées.
-
2 Comment utilisons-nous les cookies ?
Nous utilisons des cookies pour diverses raisons. Certains sont nécessaires pour des raisons techniques, d'autres permettent d'offrir une expérience personnalisée aux visiteurs et aux utilisateurs enregistrés, et certains servent à afficher des publicités provenant de réseaux tiers sélectionnés.
-
3 Gestion des cookies
Les visiteurs peuvent souhaiter limiter l'utilisation des cookies ou empêcher complètement leur enregistrement. Cependant, si vous désactivez les cookies, veuillez noter que certaines fonctionnalités de notre service pourraient ne pas fonctionner correctement.
-
4 Informations collectées
Nous collectons des informations vous concernant uniquement si nous avons une raison de le faire, par exemple pour fournir nos services, communiquer avec vous ou améliorer nos services.
Nous nous engageons à préserver la confiance et la satisfaction des visiteurs de notre site web. Nous ne collectons, ne vendons, ne louons ni n'échangeons de listes d'e-mails ou de données avec d'autres entreprises ou organisations. Consultez notre page dédiée à la politique de confidentialité pour découvrir en détail à quel moment et pourquoi nous collectons vos informations personnelles, comment nous les utilisons, les conditions limitées dans lesquelles elles peuvent être divulguées à des tiers, et les mesures que nous prenons pour les sécuriser.
Nous pouvons modifier notre politique en matière de cookies et de confidentialité à tout moment.
| GENERAL | |
|---|---|
| POWER REQUIREMENTS | 12 V DC (10.8 V to 13.2 V), DC 42 V to 57 V (Camera Input, PoE++ power supply) |
| CURRENT CONSUMPTION | 4.0 A (XLR IN connector), 1.2 A (PoE++ power supply) |
| AMBIENT OPERATING TEMPERATURE | 0 °C to 40 °C (32 °F to 104 °F) |
| AMBIENT OPERATING HUMIDITY | 20 % to 90 % (no condensation) |
| STORAGE TEMPERATURE | –20 °C to 50 °C (–4 °F to 122 °F) |
| MASS | Approx. 4.1 kg (9.04 lb) (excluding mount bracket) |
| DIMENSIONS (W X H X D) | 213 mm x 267 mm x 219 mm (8-3/8 inches x 10-1/2 inches x 8-5/8 inches) (excluding protrusions, direct ceiling mount bracket) |
| FINISH | AW‑HE145W: Pearl white AW‑HE145K: Metallic Black |
| CONTROLLER SUPPORTED | AW-RP150, AW-RP60, AK-HRP1000GJ, AK-HRP1015GJ, AK-HRP250GJ*1 |
| GENERAL | |
|---|---|
| POWER REQUIREMENTS | 12 V DC (10.8 V to 13.2 V), DC 42 V to 57 V (Camera Input, PoE++ power supply) |
| CURRENT CONSUMPTION | 4.0 A (XLR IN connector), 1.2 A (PoE++ power supply) |
| AMBIENT OPERATING TEMPERATURE | 0 °C to 40 °C (32 °F to 104 °F) |
| AMBIENT OPERATING HUMIDITY | 20 % to 90 % (no condensation) |
| STORAGE TEMPERATURE | –20 °C to 50 °C (–4 °F to 122 °F) |
| MASS | Approx. 4.1 kg (9.04 lb) (excluding mount bracket) |
| DIMENSIONS (W X H X D) | 213 mm x 267 mm x 219 mm (8-3/8 inches x 10-1/2 inches x 8-5/8 inches) (excluding protrusions, direct ceiling mount bracket) |
| FINISH | AW‑HE145W: Pearl white AW‑HE145K: Metallic Black |
| CONTROLLER SUPPORTED | AW-RP150, AW-RP60, AK-HRP1000GJ, AK-HRP1015GJ, AK-HRP250GJ*1 |
| CAMERA UNIT | |
| IMAGING SENSORS | 1-type Full-HD MOSx1 |
| LENS | Motorized Optical 20x zoom, F2.8 to F4.5 [f=8.8 mm (11/32 inches) to 176.0 mm (6‑15/16 inches); 35 mm (1‑3/8 inches) equivalent: 24.5 mm (31/32 inches) to 490.0 mm (19‑9/32 inches)] |
| ZOOM | • Optical zoom: 20x • i.Zoom: FHD 32x • Digital zoom: 10x |
| CONVERSION LENS | Not supported |
| ANGLE OF VIEW RANGE | Horizontal angle of view: 75.1° (wide) to 4.0° (tele) Vertical angle of view: 46.7° (wide) to 2.3° (tele) Diagonal angle of view: 82.8° (wide) to 4.6° (tele) |
| OPTICAL FILTER | Through, 1/4, 1/16, 1/64, IR through (IR through is used as “Night mode”) |
| FOCUS | Switching between auto and manual |
| FOCUS DISTANCE | Entire zooming range: 1000 mm (3.3 ft) Wide end: 100 mm (0.33 ft) |
| COLOR SEPARATION OPTICAL SYSTEM | 1MOS |
| STANDARD SENSITIVITY | F9, 2000 lx (When normal mode is selected) |
|---|---|
| MINIMUM ILLUMINATION | 2 lx (F2.8, 59.94p, 50IRE, 42 dB, without accumulation) |
| HORIZONTAL RESOLUTION | 1000 TV lines Typ (Center area) |
| GAIN SELECTION | Auto, 0 dB to 36 dB*2 Super Gain function equipped : +37 dB to 42 dB |
| FRAME MIX*3 | 0 dB, 6 dB, 12 dB, 18 dB, 24 dB |
| ELECTRONIC SHUTTER SPEED | 59.94p/59.94i: 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 29.97p: 1/30, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 23.98p/24p: 1/24, 1/48, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 50p/50i: 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 25p: 1/25, 1/50, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 |
| SYNCHRO SCAN | 59.94p/59.94i: 60.00 Hz to 7200 Hz 29.97p: 30.00 Hz to 7200 Hz 23.98p/24p: 24.00 Hz to 7200 Hz 50p/50i: 50.00 Hz to 7200 Hz 25p: 25.00 Hz to 7200 Hz |
| GAMMA | HD / FILMLIKE1 / FILMLIKE2 / FILMLIKE3/ FILM REC / VIDEO REC / HLG |
| WHITE BALANCE | ATW : 3200K, 5600K ATW Speed : Normal / Slow / Fast AWB : AWB-A / AWB-B VAR (selectable between 2000K and 15000K by designating a value) |
| CHROMA AMOUNT VARIABILITY | OFF, –99 % to 99 % |
|---|---|
| SCENE FILE | Scene1, Scene2, Scene3, Scene4 |
| OUTPUT FORMAT | 1080/59.94p, 1080/50p, 1080/29.97p*4, 1080/29.97PsF, 1080/25p*4, 1080/25PsF, 1080/23.98p*5, 1080/24p*4, 1080/23.98p*4, 1080/23.98PsF, 1080/59.94i, 1080/50i, 720/59.94p, 720/50p |
| SYNCHRONIZATION SYSTEM | Internal/External synchronization (BBS/Tri-level sync) |
| INPUT | |
| INPUT CONNECTOR | DC 12 V IN, G/L IN (BNC) • BBS (Black Burst Sync), tri-level sync supported |
| OUTPUT | |
| VIDEO OUTPUT | HDMI HDMI 2.0 standard 4:2:2/10bit • HDCP is not supported. • Viera Link is not supported. 3G-SDI OUT SMPTE292 / 75 Ω (BNC x 1) • Level-A/Level-B supported |
| INPUT/OUTPUT |
| GENERAL | |
|---|---|
| POWER REQUIREMENTS | 12 V DC (10.8 V to 13.2 V), DC 42 V to 57 V (Camera Input, PoE++ power supply) |
| CURRENT CONSUMPTION | 4.0 A (XLR IN connector), 1.2 A (PoE++ power supply) |
| AMBIENT OPERATING TEMPERATURE | 0 °C to 40 °C (32 °F to 104 °F) |
| AMBIENT OPERATING HUMIDITY | 20 % to 90 % (no condensation) |
| STORAGE TEMPERATURE | –20 °C to 50 °C (–4 °F to 122 °F) |
| MASS | Approx. 4.1 kg (9.04 lb) (excluding mount bracket) |
| DIMENSIONS (W X H X D) | 213 mm x 267 mm x 219 mm (8-3/8 inches x 10-1/2 inches x 8-5/8 inches) (excluding protrusions, direct ceiling mount bracket) |
| FINISH | AW‑HE145W: Pearl white AW‑HE145K: Metallic Black |
| CONTROLLER SUPPORTED | AW-RP150, AW-RP60, AK-HRP1000GJ, AK-HRP1015GJ, AK-HRP250GJ*1 |
| CAMERA UNIT | |
| IMAGING SENSORS | 1-type Full-HD MOSx1 |
| LENS | Motorized Optical 20x zoom, F2.8 to F4.5 [f=8.8 mm (11/32 inches) to 176.0 mm (6‑15/16 inches); 35 mm (1‑3/8 inches) equivalent: 24.5 mm (31/32 inches) to 490.0 mm (19‑9/32 inches)] |
| ZOOM | • Optical zoom: 20x • i.Zoom: FHD 32x • Digital zoom: 10x |
| CONVERSION LENS | Not supported |
| ANGLE OF VIEW RANGE | Horizontal angle of view: 75.1° (wide) to 4.0° (tele) Vertical angle of view: 46.7° (wide) to 2.3° (tele) Diagonal angle of view: 82.8° (wide) to 4.6° (tele) |
| OPTICAL FILTER | Through, 1/4, 1/16, 1/64, IR through (IR through is used as “Night mode”) |
| FOCUS | Switching between auto and manual |
| FOCUS DISTANCE | Entire zooming range: 1000 mm (3.3 ft) Wide end: 100 mm (0.33 ft) |
| COLOR SEPARATION OPTICAL SYSTEM | 1MOS |
| STANDARD SENSITIVITY | F9, 2000 lx (When normal mode is selected) |
| MINIMUM ILLUMINATION | 2 lx (F2.8, 59.94p, 50IRE, 42 dB, without accumulation) |
| HORIZONTAL RESOLUTION | 1000 TV lines Typ (Center area) |
| GAIN SELECTION | Auto, 0 dB to 36 dB*2 Super Gain function equipped : +37 dB to 42 dB |
| FRAME MIX*3 | 0 dB, 6 dB, 12 dB, 18 dB, 24 dB |
| ELECTRONIC SHUTTER SPEED | 59.94p/59.94i: 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 29.97p: 1/30, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 23.98p/24p: 1/24, 1/48, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 50p/50i: 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 25p: 1/25, 1/50, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 |
| SYNCHRO SCAN | 59.94p/59.94i: 60.00 Hz to 7200 Hz 29.97p: 30.00 Hz to 7200 Hz 23.98p/24p: 24.00 Hz to 7200 Hz 50p/50i: 50.00 Hz to 7200 Hz 25p: 25.00 Hz to 7200 Hz |
| GAMMA | HD / FILMLIKE1 / FILMLIKE2 / FILMLIKE3/ FILM REC / VIDEO REC / HLG |
| WHITE BALANCE | ATW : 3200K, 5600K ATW Speed : Normal / Slow / Fast AWB : AWB-A / AWB-B VAR (selectable between 2000K and 15000K by designating a value) |
| CHROMA AMOUNT VARIABILITY | OFF, –99 % to 99 % |
| SCENE FILE | Scene1, Scene2, Scene3, Scene4 |
| OUTPUT FORMAT | 1080/59.94p, 1080/50p, 1080/29.97p*4, 1080/29.97PsF, 1080/25p*4, 1080/25PsF, 1080/23.98p*5, 1080/24p*4, 1080/23.98p*4, 1080/23.98PsF, 1080/59.94i, 1080/50i, 720/59.94p, 720/50p |
| SYNCHRONIZATION SYSTEM | Internal/External synchronization (BBS/Tri-level sync) |
| INPUT | |
| INPUT CONNECTOR | DC 12 V IN, G/L IN (BNC) • BBS (Black Burst Sync), tri-level sync supported |
| OUTPUT | |
| VIDEO OUTPUT | HDMI HDMI 2.0 standard 4:2:2/10bit • HDCP is not supported. • Viera Link is not supported. 3G-SDI OUT SMPTE292 / 75 Ω (BNC x 1) • Level-A/Level-B supported |
| INPUT/OUTPUT | |
| INPUT/OUTPUT CONNECTOR | LAN LAN connector for IP control (RJ‑45) RS-422 CONTROL IN RS-422A (RJ‑45) MIC/LINE input AAC compatible (compatible with IP only) ø 3.5 mm stereo mini jack Input impedance: Approx. 10 kΩ (unbalanced) • During MIC input Supported mic: Stereo mic (plug-in power, on/off switching via menu) Supply voltage: 2.5 V ± 0.5 V Mic input sensitivity: Approx. –40 dBV (0 dB=1 V/Pa, 1 kHz) • During LINE input Input level: Approx. –10 dBV |
| PAN-TILT HEAD UNIT | |
| CAMERA/PAN-TILT HEAD CONTROL | IP connecting cable: LAN cable*6: (category 5e or above, straight cable), max. 100 m (328 ft) AW protocol connecting cable: LAN cable*6: (category 5e or above, straight cable), max. 1000 m (3280 ft) |
| INSTALLATION METHOD | Stand-alone (Desktop) or suspended (Hanging)*7 |
| PAN/TILT OPERATION SPEED | Minimum speed 0.08°/s Maximum speed 60°/s or higher*8 • Maximum speed is 180°/s in high-speed mode |
| PANNING RANGE | ±175° |
| TILTING RANGE | –30° to 210°*9 |
| QUIETNESS | NC35 or less |
| SUPPORTED OPERATING SYSTEMS AND WEB BROWSERS*10 | |
|---|---|
| SUPPORTED OPERATING SYSTEMS AND WEB BROWSERS | Windows Microsoft(R) Windows(R) 10 Windows(R) Internet Explorer(R) 11 (64-bit/32-bit) Microsoft Edge Google Chrome Mac MacOS v11.0.1 / Safari 14.01 MacOS v11.0.1 / Google Chrome MacOS V10.15 / Google Chrome MacOS V10.14 / Google Chrome iPhone / iPad iOS Google Chrome |
| IP STREAMING | |
| IMAGE STREAMING MODE | JPEG (MJPEG), H.264, H.265 |
| IMAGE RESOLUTION | |
| 1920×1080, 1280×720, 640×360, 320×180 |
| GENERAL | |
|---|---|
| POWER REQUIREMENTS | 12 V DC (10.8 V to 13.2 V), DC 42 V to 57 V (Camera Input, PoE++ power supply) |
| CURRENT CONSUMPTION | 4.0 A (XLR IN connector), 1.2 A (PoE++ power supply) |
| AMBIENT OPERATING TEMPERATURE | 0 °C to 40 °C (32 °F to 104 °F) |
| AMBIENT OPERATING HUMIDITY | 20 % to 90 % (no condensation) |
| STORAGE TEMPERATURE | –20 °C to 50 °C (–4 °F to 122 °F) |
| MASS | Approx. 4.1 kg (9.04 lb) (excluding mount bracket) |
| DIMENSIONS (W X H X D) | 213 mm x 267 mm x 219 mm (8-3/8 inches x 10-1/2 inches x 8-5/8 inches) (excluding protrusions, direct ceiling mount bracket) |
| FINISH | AW‑HE145W: Pearl white AW‑HE145K: Metallic Black |
| CONTROLLER SUPPORTED | AW-RP150, AW-RP60, AK-HRP1000GJ, AK-HRP1015GJ, AK-HRP250GJ*1 |
| CAMERA UNIT | |
| IMAGING SENSORS | 1-type Full-HD MOSx1 |
| LENS | Motorized Optical 20x zoom, F2.8 to F4.5 [f=8.8 mm (11/32 inches) to 176.0 mm (6‑15/16 inches); 35 mm (1‑3/8 inches) equivalent: 24.5 mm (31/32 inches) to 490.0 mm (19‑9/32 inches)] |
| ZOOM | • Optical zoom: 20x • i.Zoom: FHD 32x • Digital zoom: 10x |
| CONVERSION LENS | Not supported |
| ANGLE OF VIEW RANGE | Horizontal angle of view: 75.1° (wide) to 4.0° (tele) Vertical angle of view: 46.7° (wide) to 2.3° (tele) Diagonal angle of view: 82.8° (wide) to 4.6° (tele) |
| OPTICAL FILTER | Through, 1/4, 1/16, 1/64, IR through (IR through is used as “Night mode”) |
| FOCUS | Switching between auto and manual |
| FOCUS DISTANCE | Entire zooming range: 1000 mm (3.3 ft) Wide end: 100 mm (0.33 ft) |
| COLOR SEPARATION OPTICAL SYSTEM | 1MOS |
| STANDARD SENSITIVITY | F9, 2000 lx (When normal mode is selected) |
| MINIMUM ILLUMINATION | 2 lx (F2.8, 59.94p, 50IRE, 42 dB, without accumulation) |
| HORIZONTAL RESOLUTION | 1000 TV lines Typ (Center area) |
| GAIN SELECTION | Auto, 0 dB to 36 dB*2 Super Gain function equipped : +37 dB to 42 dB |
| FRAME MIX*3 | 0 dB, 6 dB, 12 dB, 18 dB, 24 dB |
| ELECTRONIC SHUTTER SPEED | 59.94p/59.94i: 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 29.97p: 1/30, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 23.98p/24p: 1/24, 1/48, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 50p/50i: 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 25p: 1/25, 1/50, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 |
| SYNCHRO SCAN | 59.94p/59.94i: 60.00 Hz to 7200 Hz 29.97p: 30.00 Hz to 7200 Hz 23.98p/24p: 24.00 Hz to 7200 Hz 50p/50i: 50.00 Hz to 7200 Hz 25p: 25.00 Hz to 7200 Hz |
| GAMMA | HD / FILMLIKE1 / FILMLIKE2 / FILMLIKE3/ FILM REC / VIDEO REC / HLG |
| WHITE BALANCE | ATW : 3200K, 5600K ATW Speed : Normal / Slow / Fast AWB : AWB-A / AWB-B VAR (selectable between 2000K and 15000K by designating a value) |
| CHROMA AMOUNT VARIABILITY | OFF, –99 % to 99 % |
| SCENE FILE | Scene1, Scene2, Scene3, Scene4 |
| OUTPUT FORMAT | 1080/59.94p, 1080/50p, 1080/29.97p*4, 1080/29.97PsF, 1080/25p*4, 1080/25PsF, 1080/23.98p*5, 1080/24p*4, 1080/23.98p*4, 1080/23.98PsF, 1080/59.94i, 1080/50i, 720/59.94p, 720/50p |
| SYNCHRONIZATION SYSTEM | Internal/External synchronization (BBS/Tri-level sync) |
| INPUT | |
| INPUT CONNECTOR | DC 12 V IN, G/L IN (BNC) • BBS (Black Burst Sync), tri-level sync supported |
| OUTPUT | |
| VIDEO OUTPUT | HDMI HDMI 2.0 standard 4:2:2/10bit • HDCP is not supported. • Viera Link is not supported. 3G-SDI OUT SMPTE292 / 75 Ω (BNC x 1) • Level-A/Level-B supported |
| INPUT/OUTPUT | |
| INPUT/OUTPUT CONNECTOR | LAN LAN connector for IP control (RJ‑45) RS-422 CONTROL IN RS-422A (RJ‑45) MIC/LINE input AAC compatible (compatible with IP only) ø 3.5 mm stereo mini jack Input impedance: Approx. 10 kΩ (unbalanced) • During MIC input Supported mic: Stereo mic (plug-in power, on/off switching via menu) Supply voltage: 2.5 V ± 0.5 V Mic input sensitivity: Approx. –40 dBV (0 dB=1 V/Pa, 1 kHz) • During LINE input Input level: Approx. –10 dBV |
| PAN-TILT HEAD UNIT | |
| CAMERA/PAN-TILT HEAD CONTROL | IP connecting cable: LAN cable*6: (category 5e or above, straight cable), max. 100 m (328 ft) AW protocol connecting cable: LAN cable*6: (category 5e or above, straight cable), max. 1000 m (3280 ft) |
| INSTALLATION METHOD | Stand-alone (Desktop) or suspended (Hanging)*7 |
| PAN/TILT OPERATION SPEED | Minimum speed 0.08°/s Maximum speed 60°/s or higher*8 • Maximum speed is 180°/s in high-speed mode |
| PANNING RANGE | ±175° |
| TILTING RANGE | –30° to 210°*9 |
| QUIETNESS | NC35 or less |
| SUPPORTED OPERATING SYSTEMS AND WEB BROWSERS*10 | |
| SUPPORTED OPERATING SYSTEMS AND WEB BROWSERS | Windows Microsoft(R) Windows(R) 10 Windows(R) Internet Explorer(R) 11 (64-bit/32-bit) Microsoft Edge Google Chrome Mac MacOS v11.0.1 / Safari 14.01 MacOS v11.0.1 / Google Chrome MacOS V10.15 / Google Chrome MacOS V10.14 / Google Chrome iPhone / iPad iOS Google Chrome |
| IP STREAMING | |
| IMAGE STREAMING MODE | JPEG (MJPEG), H.264, H.265 |
| IMAGE RESOLUTION | |
| 1920×1080, 1280×720, 640×360, 320×180 | |
| IMAGE TRANSMISSION SETTING | JPEG Frame Rate: Maximum 30 fps, Image quality (Fine / Normal) H.264 Transmission Type: Unicast port (AUTO), Unicast port (MANUAL), Multicast port Transmission Priority: Constant bit rate, Frame rate, Best effort Frame Rate: [60Hz] 60fps / 30fps / 15fps / 5fps, [50Hz] 50fps / 25fps / 12.5fps / 5fps Max Bit Rate: 24576kbps / 20480kbps / 16384kbps / 14336kbps / 12288kbps / 10240kbps / 8192kbps / 6144kbps / 4096kbp / 3072kbpss / 2048kbps / 1536kbps / 1024kbps / 768kbps / 512kbps H.265 Transmission Type: Unicast port (AUTO), Unicast port (MANUAL), Multicast port Frame Rate: [60Hz] 60fps / 30fps, [50Hz] 50fps / 25fps Max Bit Rate: 24576kbps / 20480kbps / 16384kbps / 14336kbps / 12288kbps / 10240kbps / 8192kbps / 6144kbps / 4096kbp / 3072kbpss / 2048kbps / 1536kbps / 1024kbps / 768kbps / 512kbps NDI|HX Transmission Type: Unicast port (AUTO), Unicast port (MANUAL), Multicast port Frame Rate: [60Hz] 60fps / 30fps / 15fps / 5fps, [50Hz] 50fps / 25fps / 12.5fps / 5fps Max Bit Rate 24576kbps / 20480kbps / 16384kbps / 14336kbps / 12288kbps / 10240kbps / 8192kbps / 6144kbps / 4096kbp / 3072kbpss / 2048kbps / 1536kbps / 1024kbps / 768kbps / 512kbps SRT H.264 Transmission Type: UDP Unicast Only Frame Rate: [60Hz] 60fps / 30fps / 15fps / 5fps, [50Hz] 50fps / 25fps / 12.5fps / 5fps Max Bit Rate: 24576kbps / 20480kbps / 16384kbps / 14336kbps / 12288kbps / 10240kbps / 8192kbps / 6144kbps / 4096kbp / 3072kbpss / 2048kbps / 1536kbps / 1024kbps / 768kbps / 512kbps SRT H.265 Transimission Type: UDP Unicast Only Frame Rate: [60Hz] 60fps / 30fps / 15fps / 5fps, [50Hz] 50fps / 25fps / 12.5fps / 5fps Max Bit Rate: 24576kbps / 20480kbps / 16384kbps / 14336kbps / 12288kbps / 10240kbps / 8192kbps / 6144kbps / 4096kbp / 3072kbpss / 2048kbps / 1536kbps / 1024kbps / 768kbps / 512kbps RTMP/RTMPS Frame Rate: [60Hz] 60fps / 30fps / 15fps / 5fps, [50Hz] 50fps / 25fps / 12.5fps / 5fps, [24Hz] 24fps Max Bit Rate: 24576kbps / 20480kbps / 16384kbps / 14336kbps / 12288kbps / 10240kbps / 8192kbps / 6144kbps / 4096kbp / 3072kbpss / 2048kbps / 1536kbps / 1024kbps / 768kbps / 512kbps |
| AUDIO COMPRESSION TYPE | AAC-LC, 48 kHz / 16 bit / 2ch |
| GENERAL | |
|---|---|
| POWER REQUIREMENTS | 12 V DC (10.8 V to 13.2 V), DC 42 V to 57 V (Camera Input, PoE++ power supply) |
| CURRENT CONSUMPTION | 4.0 A (XLR IN connector), 1.2 A (PoE++ power supply) |
| AMBIENT OPERATING TEMPERATURE | 0 °C to 40 °C (32 °F to 104 °F) |
| AMBIENT OPERATING HUMIDITY | 20 % to 90 % (no condensation) |
| STORAGE TEMPERATURE | –20 °C to 50 °C (–4 °F to 122 °F) |
| MASS | Approx. 4.1 kg (9.04 lb) (excluding mount bracket) |
| DIMENSIONS (W X H X D) | 213 mm x 267 mm x 219 mm (8-3/8 inches x 10-1/2 inches x 8-5/8 inches) (excluding protrusions, direct ceiling mount bracket) |
| FINISH | AW‑HE145W: Pearl white AW‑HE145K: Metallic Black |
| CONTROLLER SUPPORTED | AW-RP150, AW-RP60, AK-HRP1000GJ, AK-HRP1015GJ, AK-HRP250GJ*1 |
| CAMERA UNIT | |
| IMAGING SENSORS | 1-type Full-HD MOSx1 |
| LENS | Motorized Optical 20x zoom, F2.8 to F4.5 [f=8.8 mm (11/32 inches) to 176.0 mm (6‑15/16 inches); 35 mm (1‑3/8 inches) equivalent: 24.5 mm (31/32 inches) to 490.0 mm (19‑9/32 inches)] |
| ZOOM | • Optical zoom: 20x • i.Zoom: FHD 32x • Digital zoom: 10x |
| CONVERSION LENS | Not supported |
| ANGLE OF VIEW RANGE | Horizontal angle of view: 75.1° (wide) to 4.0° (tele) Vertical angle of view: 46.7° (wide) to 2.3° (tele) Diagonal angle of view: 82.8° (wide) to 4.6° (tele) |
| OPTICAL FILTER | Through, 1/4, 1/16, 1/64, IR through (IR through is used as “Night mode”) |
| FOCUS | Switching between auto and manual |
| FOCUS DISTANCE | Entire zooming range: 1000 mm (3.3 ft) Wide end: 100 mm (0.33 ft) |
| COLOR SEPARATION OPTICAL SYSTEM | 1MOS |
| STANDARD SENSITIVITY | F9, 2000 lx (When normal mode is selected) |
| MINIMUM ILLUMINATION | 2 lx (F2.8, 59.94p, 50IRE, 42 dB, without accumulation) |
| HORIZONTAL RESOLUTION | 1000 TV lines Typ (Center area) |
| GAIN SELECTION | Auto, 0 dB to 36 dB*2 Super Gain function equipped : +37 dB to 42 dB |
| FRAME MIX*3 | 0 dB, 6 dB, 12 dB, 18 dB, 24 dB |
| ELECTRONIC SHUTTER SPEED | 59.94p/59.94i: 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 29.97p: 1/30, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 23.98p/24p: 1/24, 1/48, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 50p/50i: 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 25p: 1/25, 1/50, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 |
| SYNCHRO SCAN | 59.94p/59.94i: 60.00 Hz to 7200 Hz 29.97p: 30.00 Hz to 7200 Hz 23.98p/24p: 24.00 Hz to 7200 Hz 50p/50i: 50.00 Hz to 7200 Hz 25p: 25.00 Hz to 7200 Hz |
| GAMMA | HD / FILMLIKE1 / FILMLIKE2 / FILMLIKE3/ FILM REC / VIDEO REC / HLG |
| WHITE BALANCE | ATW : 3200K, 5600K ATW Speed : Normal / Slow / Fast AWB : AWB-A / AWB-B VAR (selectable between 2000K and 15000K by designating a value) |
| CHROMA AMOUNT VARIABILITY | OFF, –99 % to 99 % |
| SCENE FILE | Scene1, Scene2, Scene3, Scene4 |
| OUTPUT FORMAT | 1080/59.94p, 1080/50p, 1080/29.97p*4, 1080/29.97PsF, 1080/25p*4, 1080/25PsF, 1080/23.98p*5, 1080/24p*4, 1080/23.98p*4, 1080/23.98PsF, 1080/59.94i, 1080/50i, 720/59.94p, 720/50p |
| SYNCHRONIZATION SYSTEM | Internal/External synchronization (BBS/Tri-level sync) |
| INPUT | |
| INPUT CONNECTOR | DC 12 V IN, G/L IN (BNC) • BBS (Black Burst Sync), tri-level sync supported |
| OUTPUT | |
| VIDEO OUTPUT | HDMI HDMI 2.0 standard 4:2:2/10bit • HDCP is not supported. • Viera Link is not supported. 3G-SDI OUT SMPTE292 / 75 Ω (BNC x 1) • Level-A/Level-B supported |
| INPUT/OUTPUT | |
| INPUT/OUTPUT CONNECTOR | LAN LAN connector for IP control (RJ‑45) RS-422 CONTROL IN RS-422A (RJ‑45) MIC/LINE input AAC compatible (compatible with IP only) ø 3.5 mm stereo mini jack Input impedance: Approx. 10 kΩ (unbalanced) • During MIC input Supported mic: Stereo mic (plug-in power, on/off switching via menu) Supply voltage: 2.5 V ± 0.5 V Mic input sensitivity: Approx. –40 dBV (0 dB=1 V/Pa, 1 kHz) • During LINE input Input level: Approx. –10 dBV |
| PAN-TILT HEAD UNIT | |
| CAMERA/PAN-TILT HEAD CONTROL | IP connecting cable: LAN cable*6: (category 5e or above, straight cable), max. 100 m (328 ft) AW protocol connecting cable: LAN cable*6: (category 5e or above, straight cable), max. 1000 m (3280 ft) |
| INSTALLATION METHOD | Stand-alone (Desktop) or suspended (Hanging)*7 |
| PAN/TILT OPERATION SPEED | Minimum speed 0.08°/s Maximum speed 60°/s or higher*8 • Maximum speed is 180°/s in high-speed mode |
| PANNING RANGE | ±175° |
| TILTING RANGE | –30° to 210°*9 |
| QUIETNESS | NC35 or less |
| SUPPORTED OPERATING SYSTEMS AND WEB BROWSERS*10 | |
| SUPPORTED OPERATING SYSTEMS AND WEB BROWSERS | Windows Microsoft(R) Windows(R) 10 Windows(R) Internet Explorer(R) 11 (64-bit/32-bit) Microsoft Edge Google Chrome Mac MacOS v11.0.1 / Safari 14.01 MacOS v11.0.1 / Google Chrome MacOS V10.15 / Google Chrome MacOS V10.14 / Google Chrome iPhone / iPad iOS Google Chrome |
| IP STREAMING | |
| IMAGE STREAMING MODE | JPEG (MJPEG), H.264, H.265 |
| IMAGE RESOLUTION | |
| 1920×1080, 1280×720, 640×360, 320×180 | |
| AUDIO COMPRESSION TYPE | AAC-LC, 48 kHz / 16 bit / 2ch |
| SUPPORTED PROTOCOL | IPv6: TCP / IP, UDP / IP, HTTP, HTTPS, DNS, NTP, DHCPv6, MLD, ICMP, ARP, RTSP/RTP IPv4: TCP / IP, UDP / IP, HTTP, HTTPS, RTSP/RTP, DHCP, DNS, DDNS, NTP, IGMP, ICMP, ARP, RTMP, RTMPS, SRT, MPEG2-TS over UDP |
| OTHER FUNCTION | |
| NDI SUPPORT*11 | NDI | HX |
| TALLY LED DISPLAY COLOR | red / green |
AW-HE145KEJ
Nouveau
Références spécifiques
- MPN
- AW-HE145
Une caméra AW-HE145KEJ robotisée HD permettant d’obtenir des images de haute qualité, même dans des environnements sombres.
- Haute sensibilité grâce au capteur grand format de type 1 pouce
- Zoom optique 20 x / prise de vue grand angle 75,1°
- Mouvements PTZ fluides et précis
- Production vidéo de haute qualité, même dans des environnements sombres
- Prise en charge du SRT pour une transmission vidéo stable
