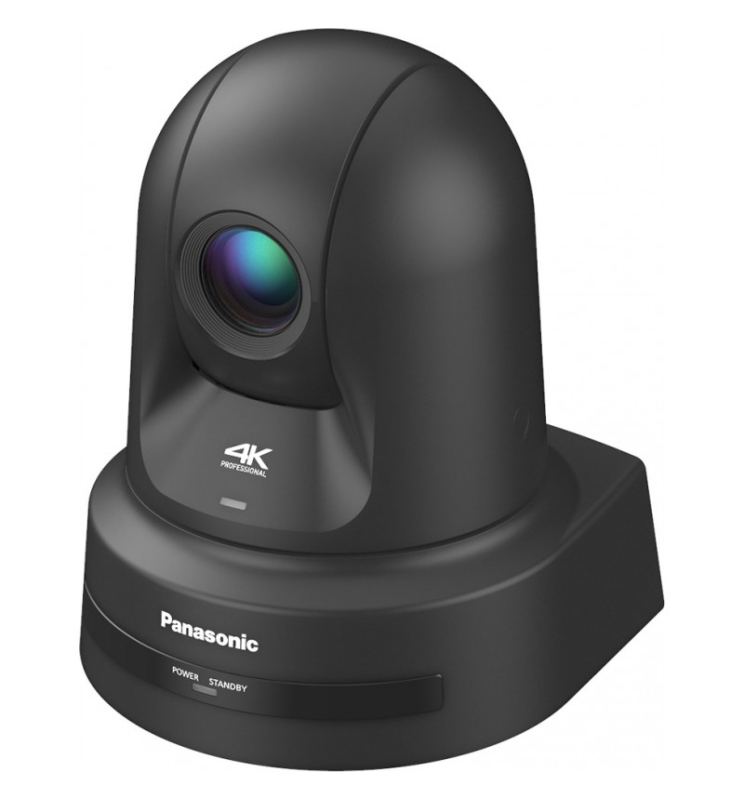

AW-UE80KEJ Caméra robotisée 4K/HD - Panasonic
Caméra AW-UE80KEJ :
- Prise en charge d’une multitude de protocoles de transmission IP, y compris le NDI à bande passante élevée*1, le NDI|HX et le SRT*2
- Prise en charge des prises de vue 4K 50p/60p
- Objectif grand angle pour un champ de vision de 74,1° et zoom optique 24x
- Prise en charge du protocole FreeD pour une utilisation au sein de systèmes AR/VR
- Nouvelle technologie de motorisation directe pour davantage de réactivité en toute discrétion
Nouveau
✅Stock réel
➡️Products marked as in stock, are in our Warehouse
✅Intégrateur Broadcast depuis +30ans
➡️Broadcast & Video Services
✅Paiements 100% Sécurisés (CB, PayPal, Virement, Devis)
Notre politique de confidentialité
Notre politique de confidentialité décrit nos principes en matière de collecte, de traitement et de stockage de vos informations. Elle précise également l’utilisation que nous faisons des cookies et les options dont vous disposez pour les gérer.
-
1 Qu'est-ce qu'un cookie ?
Les cookies sont de petits fichiers de données, enregistrés sous forme de fichiers texte sur votre ordinateur ou tout autre appareil lorsque des sites web sont consultés via un navigateur. Ils sont couramment utilisés pour mémoriser vos préférences et informations, que ce soit pour une seule visite ou pour plusieurs visites répétées.
-
2 Comment utilisons-nous les cookies ?
Nous utilisons des cookies pour diverses raisons. Certains sont nécessaires pour des raisons techniques, d'autres permettent d'offrir une expérience personnalisée aux visiteurs et aux utilisateurs enregistrés, et certains servent à afficher des publicités provenant de réseaux tiers sélectionnés.
-
3 Gestion des cookies
Les visiteurs peuvent souhaiter limiter l'utilisation des cookies ou empêcher complètement leur enregistrement. Cependant, si vous désactivez les cookies, veuillez noter que certaines fonctionnalités de notre service pourraient ne pas fonctionner correctement.
-
4 Informations collectées
Nous collectons des informations vous concernant uniquement si nous avons une raison de le faire, par exemple pour fournir nos services, communiquer avec vous ou améliorer nos services.
Nous nous engageons à préserver la confiance et la satisfaction des visiteurs de notre site web. Nous ne collectons, ne vendons, ne louons ni n'échangeons de listes d'e-mails ou de données avec d'autres entreprises ou organisations. Consultez notre page dédiée à la politique de confidentialité pour découvrir en détail à quel moment et pourquoi nous collectons vos informations personnelles, comment nous les utilisons, les conditions limitées dans lesquelles elles peuvent être divulguées à des tiers, et les mesures que nous prenons pour les sécuriser.
Nous pouvons modifier notre politique en matière de cookies et de confidentialité à tout moment.
| LENS | Motorized Optical 24x zoom, F1.8 to F4.0[f=4.12 mm (5/32 inches) to 98.9 mm (3‑29/32 inches);35 mm (1‑3/8 inches) equivalent: 25.0 mm (31/32 inches) to 600.0 mm (23‑5/8 inches)] |
|---|---|
| GENERAL | – |
| MINIMUM ILLUMINATION | 3 lx (F1.8, 59.94p, 50IRE, 42 dB, without accumulation) |
| ZOOM | • Optical zoom: 24x• i.Zoom UHD 28x, FHD 36x• Digital extender zoom: 1.4x, 2x |
| HORIZONTAL RESOLUTION | 1,500 TV Typ (Center area, UHD mode, wide)1,000 TV Typ (Center area, FHD mode, wide) |
| INPUT CONNECTORS | DC 12 V IN, G/L IN(BNC)BBS (Black Burst Sync), tri-level sync supported) |
| INPUT/OUTPUT CONNECTOR | – |
| GAIN SELECTION | Auto, 0 dB to 36 dB*3 (Super Gain function equipped : 37 dB to 42 dB) |
| WHITE BALANCE | • ATW: 3200 K, 5600 K (ATW Speed 3-stage variables.)• AWB: AWB-A / AWB-B• VAR (selectable between 2000 K and 15000 K by designating a value) |
| STORAGE TEMPERATURE | -20 to 50°C (-4 °F to 122 °F) |
| VIDEO OUTPUT | – |
| CURRENT CONSUMPTION | 3.0 A (Supplied AC adaptor), 1.0 A (PoE++ power supply) |
| POWER REQUIREMENTS | 12 V DC (10.8 V to 13.2 V) (Supplied AC adapter) |
| OPTICAL FILTER | Through, 1/4, 1/16, 1/64, IR through (IR through is used as “night mode”) |
| OUTPUT FORMAT | – |
| COLOR SEPARATION OPTICAL SYSTEM | 1MOS |
| FOCUS | Switching between auto and manual |
| FOCUS DISTANCE | Entire zooming range: 1200 mm (3.9 ft)Wide end: 100 mm (0.33 ft) |
| GAMMA | HD / Normal / Cinema1 / Cinema2 / Still Like |
| SCENE FILE | – |
| SYNCHRONIZATION SYSTEM | Internal/External synchronization (BBS/Tri-level sync) |
| PAN/TILT OPERATION SPEED | Speed range: 0.08°/s to 60°/s (Normal mode)*8 • 3 speed modes installedNormal:60°/s, Fast1:90°/s, Fast2:180°/s |
| QUIETNESS | NC25 or less |
| ELECTRONIC SHUTTER SPEED | – |
| TILTING RANGE | -30°to 90°*9 |
| IMAGING SENSORS | 1/2.5-type MOS×1 |
| FRAME MIX | Auto, 0 dB, 6 dB, 12 dB, 18 dB, 24 dB*4 |
| CHROMA AMOUNT VARIABILITY | OFF, -99 ％ to 99 % |
| AMBIENT OPERATING HUMIDITY | 20 ％ to 90 ％ (no condensation) |
| FINISH | AW-UE80W: WhiteAW-UE80K: Black |
| IMAGE RESOLUTION | 1920×1080, 1280×720, 640×360, 320×180 |
| PANNING RANGE | ±175° |
| CAMERA UNIT | – |
| MASS | Approx. 2.0 kg (4.41 lbs) (excluding ceiling mounting bracket),Approx. 2.25 kg (4.96 lbs) (including ceiling mounting bracket) |
| INPUT | – |
| OUTPUT | – |
| INPUT/OUTPUT | – |
| INSTALLATION METHOD | Stand-alone (Desktop) or suspended (Hanging)*7 |
| CAMERA/PAN-TILT HEAD CONTROL | – |
| CONTROLLER SUPPORTED | AW-RP150GJ, AW-RP60GJ, AW-RM50AG, AK-HRP1000*1, 2, AK-HRP1005*1, 2, AK-HRP1015*2, AK-HRP250*2 |
| AMBIENT OPERATING TEMPERATURE | 0 °C to 40 °C (32 °F to 104 °F) |
| DIMENSIONS (W X H X D) (MM) | 170.0 mm x 211.0 mm x 171.0 mm |
| DIMENSIONS (W X H X D) (INCH) | 6.693 inches x 8.307 inches x 6.732inches |
| POE++ | IEEE802.3bt compliant: DC42 to 57 V (Camera Input)(Software authentication (LLDP) is supported) |
| CONVERSION LENS | Not supported |
| ANGLE OF VIEW RANGE | Horizontal angle of view: 74.1° (wide) to 3.3° (tele)Vertical angle of view: 46.0° (wide) to 1.9° (tele)Diagonal angle of view: 81.8° (wide) to 3.8° (tele) |
| SYNCRO SCAN | – |
| SUPPORTED OPERATING SYSTEMS AND WEB BROWSERS | – |
| IP STREAMING | – |
| IMAGE STREAMING MODE | JPEG(MJPEG), H.264, H.265, NDI®|HX version 2*11, 12, 13 (H.264), High Bandwidth NDI® |
| IMAGE TRANSMISSION SETTING (JPEG) | Frame rate: Maximum 30fpsImage quality (Fine / Normal) |
| IMAGE TRANSMISSION SETTING (H.264) | Transmission Type: Unicast port (AUTO), Unicast port (MANUAL), Multicast port Transmission Priority: Constant bit rate, Frame rate, Best effort Frame Rate: [60 Hz] 5fps / 15fps / 30fps / 60fps, [50 Hz] 5fps / 12.5fps / 25fps / 50fps Max Bit Rate: 512kbps / 768kbps / 1024kbps / 1536kbps / 2048kbps / 3072kbps / 4096kbps / 6144kbps / 8192kbps / 10240kbps / 12288kbps / 14336kbps / 16384kbps / 20480kbps / 24576kbps |
| IMAGE TRANSMISSION SETTING (H.265) | Transmission Type: Unicast port (AUTO), Unicast port (MANUAL), Multicast port Transmission Priority: Constant bit rate, Frame rate, Best effort Frame Rate: [60 Hz] 30fps / 60fps, [50 Hz] 25fps / 50fps Max Bit Rate: 512kbps / 768kbps / 1024kbps / 1536kbps / 2048kbps / 3072kbps / 4096kbps / 6144kbps / 8192kbps / 10240kbps / 12288kbps / 14336kbps / 16384kbps / 20480kbps / 24576kbps |
| AUDIO COMPRESSION TYPE | AAC-LC, 48 kHz, 16 bit, 2 ch |
| PAN TILT HEAD UNIT | – |
| SUPPORTED PROTOCOL | – |
| NOTE | *1:Discontinued Model*2:Will be supported in the future*3:Can be set in 1 dB step increments.*4:Cannot be set when the format is 2160/29.97p, 2160/23.98p, 2160/24p, 2160/25p, 1080/29.97p, 1080/23.98p (59.94i), 1080/29.97PsF, 1080/23.98PsF, 1080/25p, 1080/25PsF.*5:STP (Shielded Twisted Pair) is recommended.*6:Use Category 6 or higher when transmitting 4K video.*7:To ensure safety, the unit must be secured using the mount bracket supplied.*8:Note that the operating noise may be loud in high speed. If the operating noise is disturbing, use the Normal mode.*9:The main unit may appear in the video depending on the pan/tilt position.*10:Supported OS indicated are for browsers current as of August 2020. See “Service and Support / PASS” for the latest information on browser support.*11:NDI® is a new protocol developed by NewTek, Inc. that supports IP video production workflow.*12:NDI® is a registered trademark of NewTek, Inc. in the United States.*13:In this instance, NDI® is used to indicate low latency with high bandwidth NDI®, NDI®|HX is used to indicate high efficiency low bandwidth NDI®|HX. In the NDI®|HX mode, 4K video signals cannot be output. AW-UE80 supports NDI®|HX version 2 and Full HD output.*14:Simultaneous operation with the AW protocol is not possible.*15:Non-synchronous with SDI-OUT |
| OTHER FUNCTION | – |
| TALLY LED DISPLAY COLOR | red / green |
| NDI SUPPORT | NDI®|HX version 2: Included as standardHigh Bandwidth NDI®: Included as standard*14 |
| MIC/LINE INPUT | AAC compatibility (compatible with IP only)Φ3.5 mm stereo mini jack• During MIC inputInput level: -40 dBV (0 dB=1 V/Pa, 1 kHz)Supply voltage: 2.5 V±0.5 V (plug-in power compatible)”• Input impedance: Approx. 2 kΩ (when plug-in power is turned ON)Approx. 20 kΩ (when plug-in power is turned OFF)”• During LINE inputInput level: -10 dBVInput impedance: Approx. 3 kΩ• Input volume variable range: -36 dB to 12 dB (3 dB step)• Embedded audio output level: -12 dBFS• Sampling frequency: 48 kHz• Quantization bit rate: 24 bit (SDI, HDMI), 16 bit (IP) |
| IP CONNECTING CABLE | • If you have a PoE++ ethernet hubLAN cable*5, 6 (category 5e or above, straight cable) Max 100 m (328 ft)• If you don’t have a PoE++ ethernet hubLAN cable*5, 6 (category 5e or above, straight cable) Max 100 m (328 ft) |
| AW PROTOCOL CONNECTING CABLE | LAN cable*5 (category 5e or above, straight cable) Max 1000 m (3280 ft) |
| IMAGE STABILIZATION | OIS 2-axisMENU switching: Select between Off/O.I.S.(STABLE)/O.I.S.(PAN/TILT) |
| ELECTRONIC SHUTTER SPEED | 59.94P/59.94I | 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 |
| ELECTRONIC SHUTTER SPEED | 29.97P | 1/30, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 |
| ELECTRONIC SHUTTER SPEED | 50P/50I | 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 |
| ELECTRONIC SHUTTER SPEED | 25P | 1/25, 1/50, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 |
| INPUT/OUTPUT CONNECTOR | LAN | LAN terminal for IP control (RJ-45) |
| INPUT/OUTPUT CONNECTOR | RS-422 | CONTROL IN RS422A(RJ-45) |
| WINDOWS | Windows 10 Windows® Internet Explorer® 11(32 bit / 64 bit) Microsoft Edge Google Chrome |
| MAC | Mac OS v11.0.1 / Safari 14.01 Mac OS v11.0.1 / Google Chrome Mac OS v10.15 / Google Chrome Mac OS v10.14 / Google Chrome |
| VIDEO OUTPUT | HDMI | HDMI 2.0 connector, 4:2:2/10bit• HDCP is not supported.• Viera Link is not supported |
| SUPPORTED PROTOCOL | IPV4 | TCP/IP, UDP/IP, HTTP, HTTPS, RTSP/RTP, MPEG2-TS, DHCP, DNS, DDNS, NTP, IGMP, ICMP, ARP, RTMP, RTMPS, SRT |
| SUPPORTED PROTOCOL | IPV6 | TCP/IP, UDP/IP, HTTP, HTTPS, DNS, NTP, DHCPv6, RTSP/RTP, MLD, ICMP, ARP, SRT |
| OUTPUT FORMATS | High Bandwidth NDI® : 【HD】1080/59.94p, 1080/50p, 1080/29.97p, 1080/25p, 1080/24p, 1080/23.98p, 720/59.94p, 720/50p |
| NEW FUNCTIONS | – |
| ELECTRONIC SHUTTER SPEED | 23.98P/24P | 1/24, 1/48, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000 |
| SYNCHRO SCAN | 59.94P/59.94I | 60.0 Hz to 7200 Hz |
| SYNCHRO SCAN | 29.97P | 30.0 Hz to 7200 Hz |
| SYNCHRO SCAN | 23.98P/24P | 24.0 Hz to 7200 Hz |
| SYNCHRO SCAN | 50P/50I | 50.0 Hz to 7200 Hz |
| SYNCHRO SCAN | 25P | 25.0 Hz to 7200 Hz |
| OUTPUT FORMAT | SDI | HD | 1080/59.94p, 50p, 1080/59.94i, 50i, 1080/29.97p (Native), 25p (Native), 23.98p (over59.94i), 1080/29.97psF, 25psF, 23.98psF, 1080/24p (Just), 23.98p (Native), 720/59.94p, 50p |
| OUTPUT FORMAT | HDMI | 4K | 2160/59.94p, 2160/50p, 2160/29.97p (Native), 2160/25p (Native), 2160/24p (Just), 2160/23.98p (Native) |
| OUTPUT FORMAT | HDMI | HD | 1080/59.94p, 50p, 1080/59.94i, 50i, 1080/29.97p (Native), 25p (Native), 23.98p (over59.94p), 1080/24p (Just), 23.98p (Native), 720/59.94p, 50p |
| VIDEO OUTPUT | 3G-SDI OUT | SMPTE292M/424M/ 75 Ω(BNC×1)• Level-A/Level-B supported |
| IMAGE RESOLUTION | NDI®|HX VERSION 2 | 1920×1080, 1280×720 |
| AUDIO COMPRESSION TYPE | HIGH BANDWIDTH NDI® | AAC-LC, 48 kHz, 2 ch |
| AUDIO COMPRESSION TYPE | NDI®|HX VERSION 2 | AAC-LC, 48 kHz, 16 bit, 2 ch |
| F-NUMBER DISPLAY | Displayed on the AW-RP150GJ and AW-RP60GJ sides |
| MENU DISPLAY ON IP VIDEO | Supported*15 |
| POWER LED | ON/OFF control |
| TRIPOD SCREW PENETRATION MEASURES | Possible |
| PAN/TILT MECHANICAL METHOD | New Direct Drive System |
| PRIVACY MODE | The lens surface faces backward when standing by (ON/OFF)* Default is OFF |
| VR COMPATIBILITY | Supports FreeD protocol |
| ANDROID | Android OS Google Chrome |
| IPHONE / IPAD | iOS Safari iPadOS |
| IMAGE TRANSMISSION SETTING (HIGH BANDWIDTH NDI®) | Transimission Type: TCP/UDP, Unicast/Multicast Max Bit Rate: 250 Mbps |
| IMAGE TRANSMISSION SETTING (NDI®|HX VERSION 2) | Transimission Type: TCP/UDP, Unicast/Multicast |
AW-UE80KEJ
Nouveau
Références spécifiques
- MPN
- AW-UE80
Caméra AW-UE80KEJ :
- Prise en charge d’une multitude de protocoles de transmission IP, y compris le NDI à bande passante élevée*1, le NDI|HX et le SRT*2
- Prise en charge des prises de vue 4K 50p/60p
- Objectif grand angle pour un champ de vision de 74,1° et zoom optique 24x
- Prise en charge du protocole FreeD pour une utilisation au sein de systèmes AR/VR
- Nouvelle technologie de motorisation directe pour davantage de réactivité en toute discrétion
